Feature
- Supports 2-14S & 200A Cont, 400A Burst
- DroneCAN Communication Protocol
- Small & Compact Design
- Two 5V Outputs with Independent BEC IC and Circuitry
- Separated Sensor and BEC Board to Minimize Electrical Noise Interference

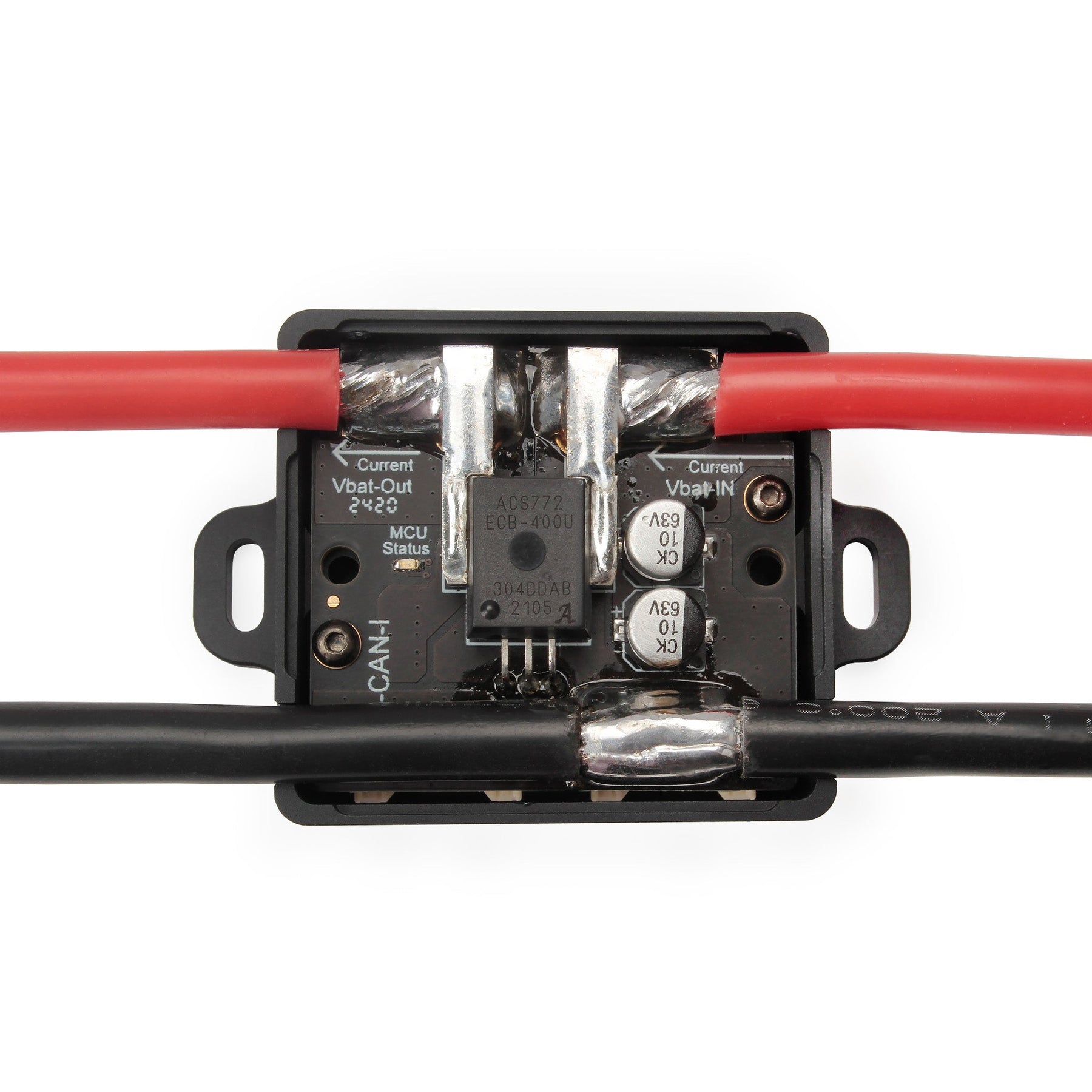

- Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
- High Accuracy Temperature Sensor for Temperature Monitor
-

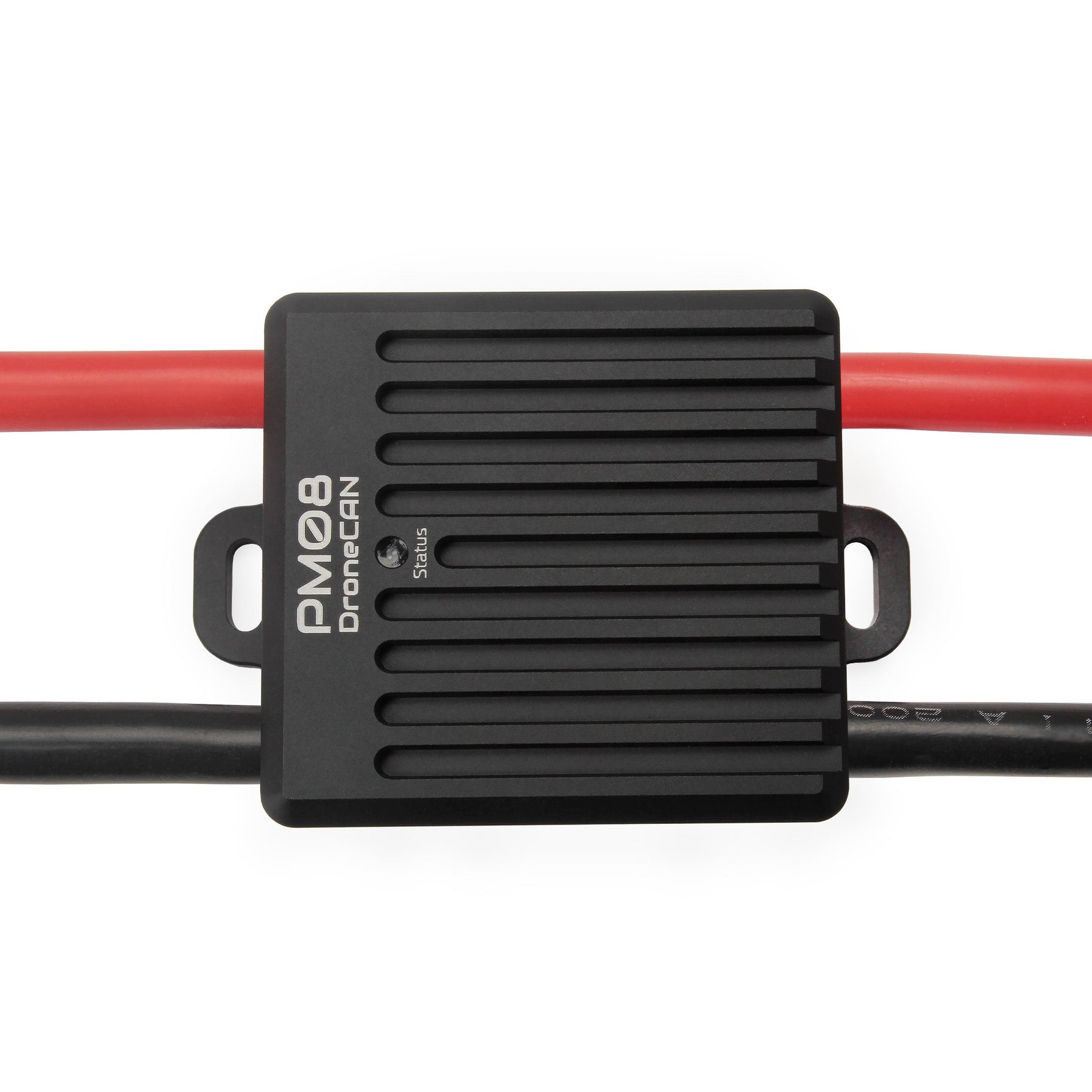

High-Efficiency Aluminum Heat Dissipation Shell
- Software toggle for CAN termination resistance
Specifications
- Processor: STM32F405RG 168MHz 1024KB Flash 196KB RAM
- Voltage input: 7~60.9V (2S~14S)
- Continuous current:200A
-
Burst current
- 400A @ 25℃ 1 sec
- 1000A @ 25℃ < 1 sec
- Max current sensing: 376A
- Voltage accuracy: ±0.1V
- Current accuracy: ±5%
- Temperature accuracy:±1℃
- Wire gauge: 8 AWG (high-strand silicon-insulated)

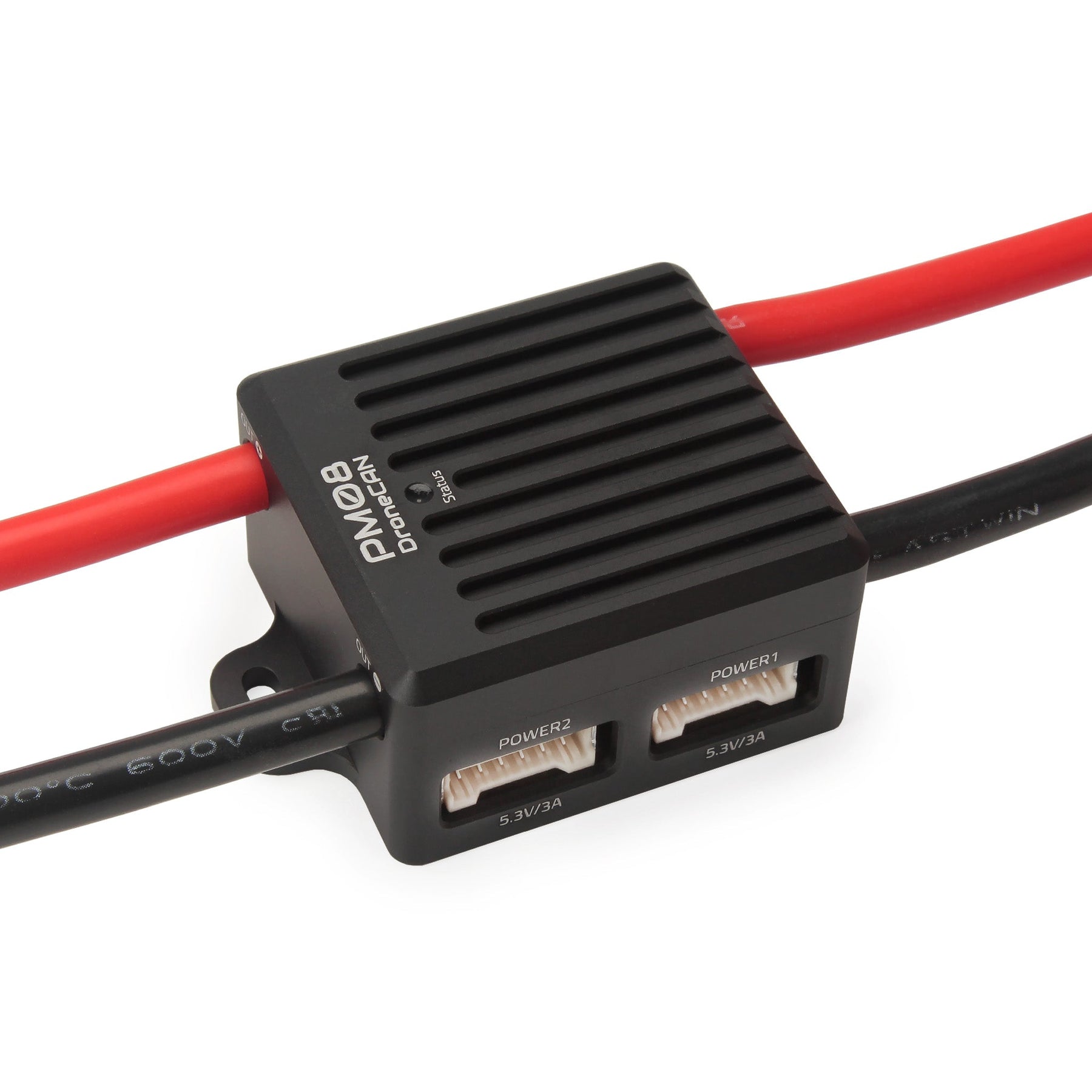

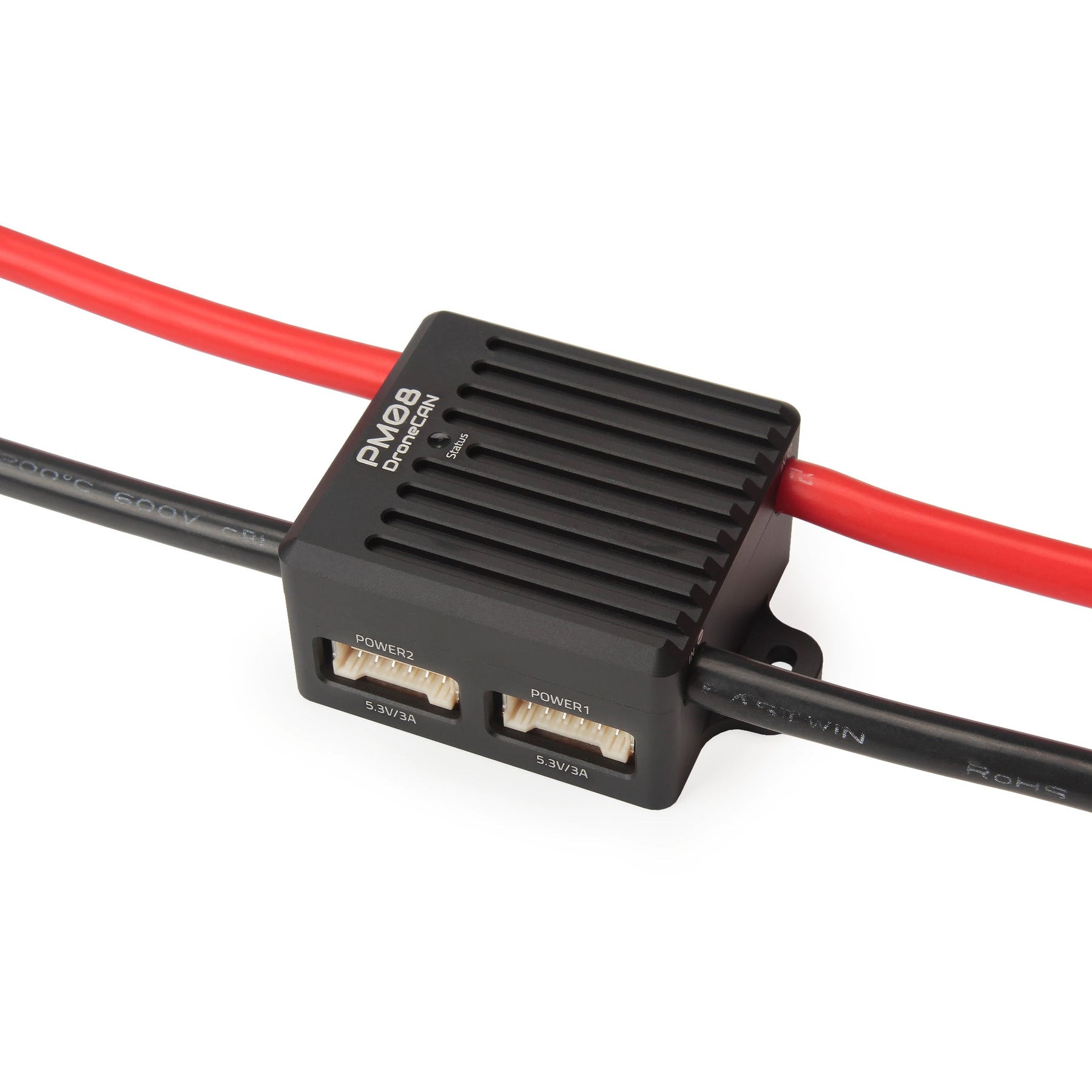

- Power port output: 5.3V/3A each port
- Protocol: DroneCAN
- Operating temperature:-25℃~85℃
- Software-Controlled CAN Termination
- Firmware upgrade: Support
- Calibration: Support
Pinout
Interface Type
- Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
-

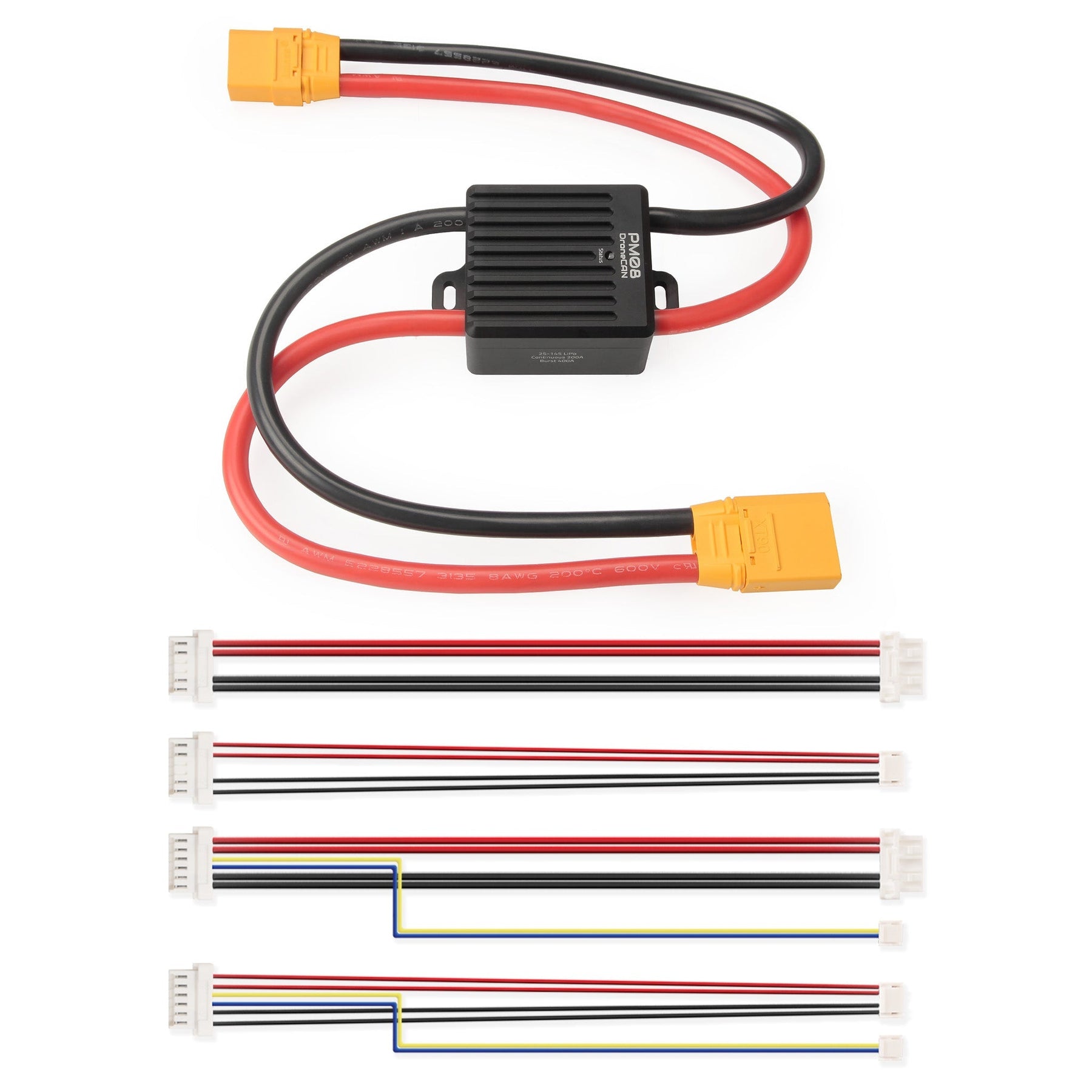

Battery IN/OUT Options:

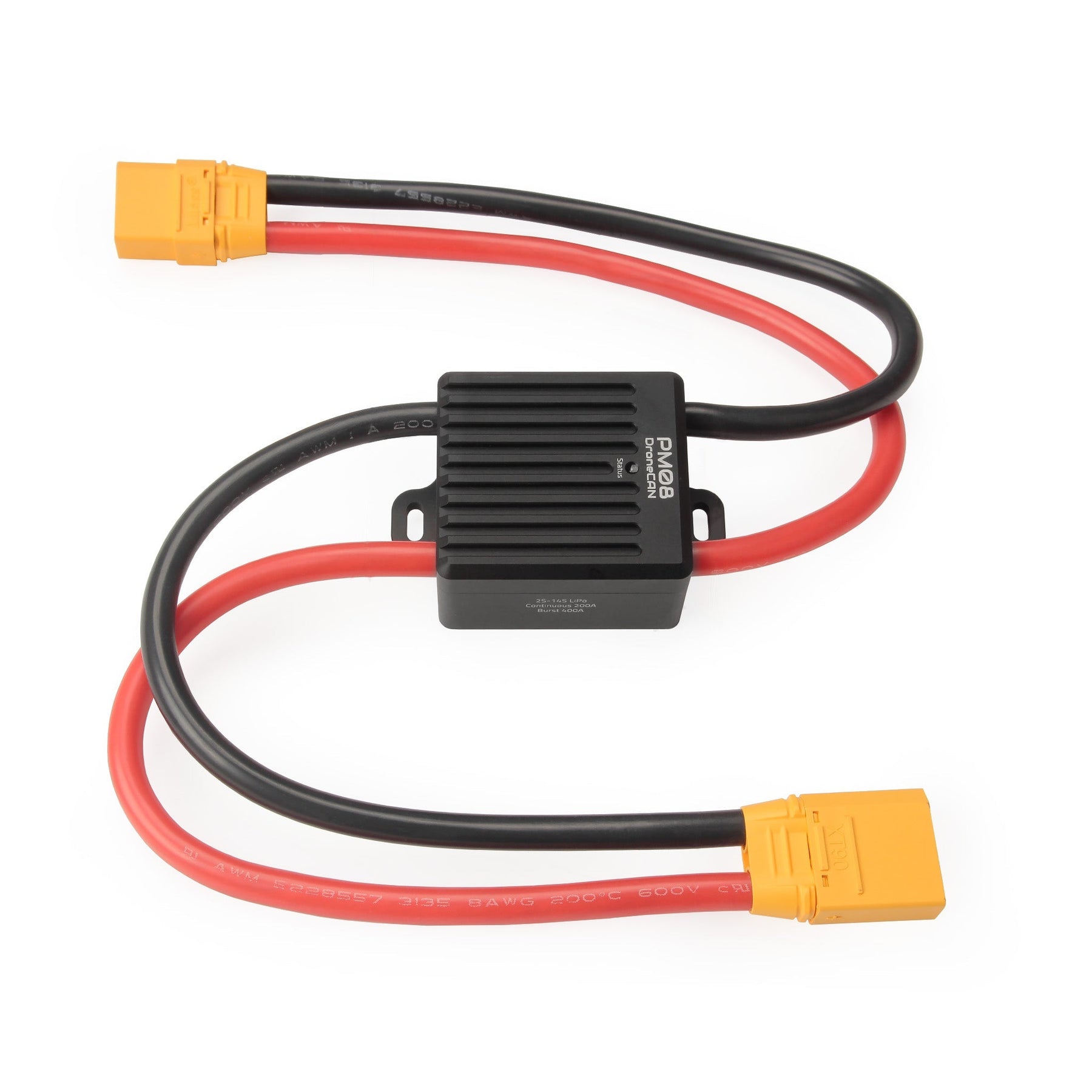

- XT90 Connectors

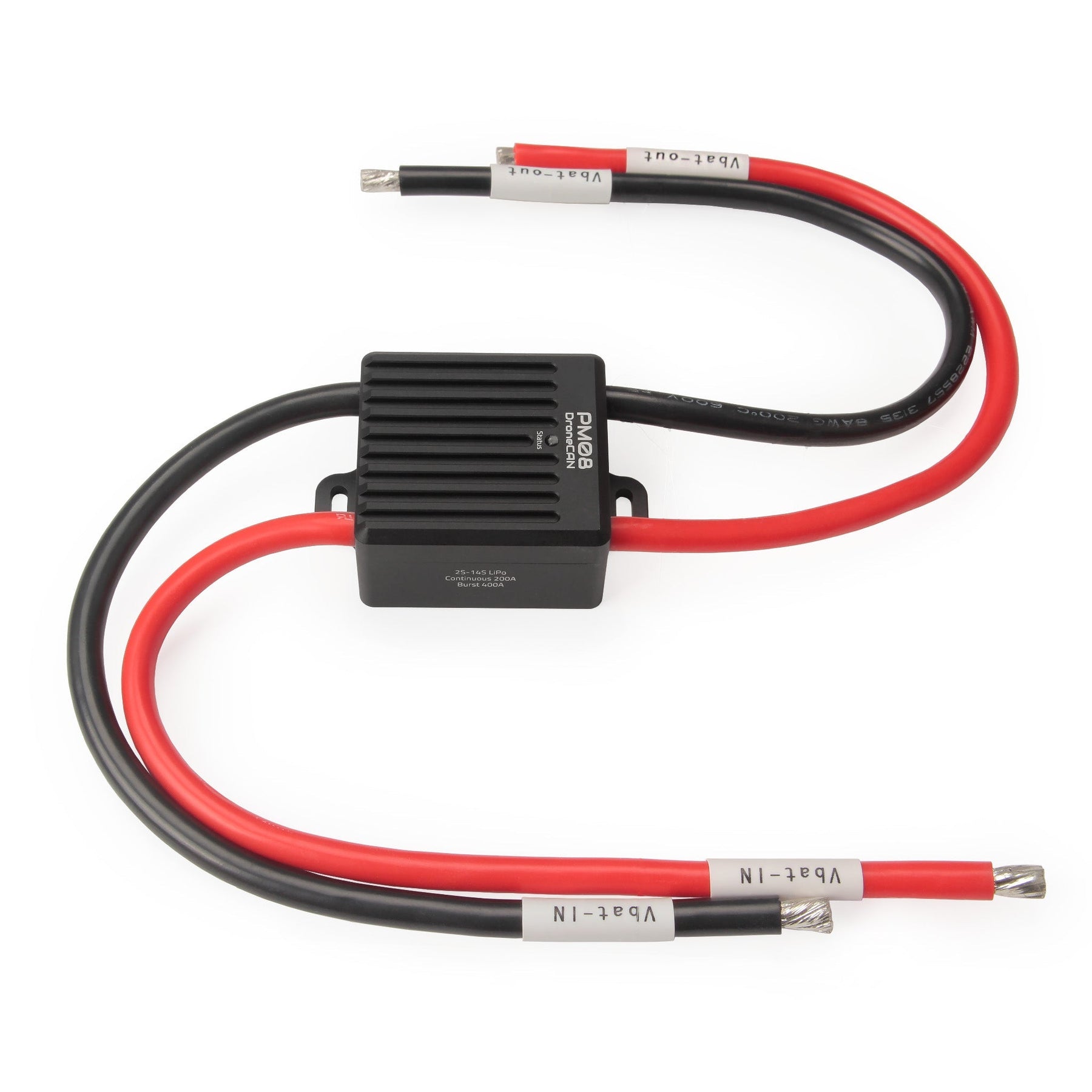

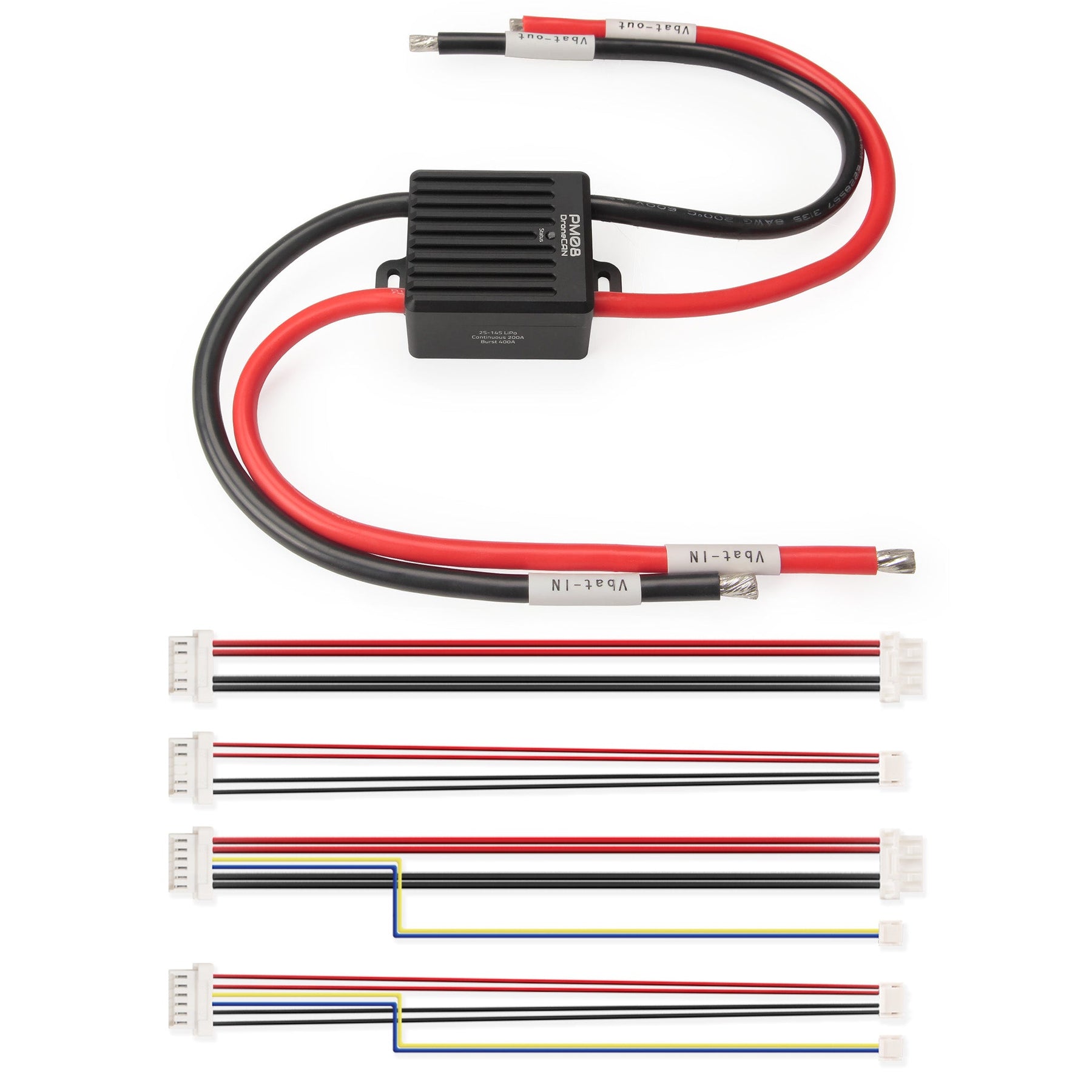

- Tinned Wires

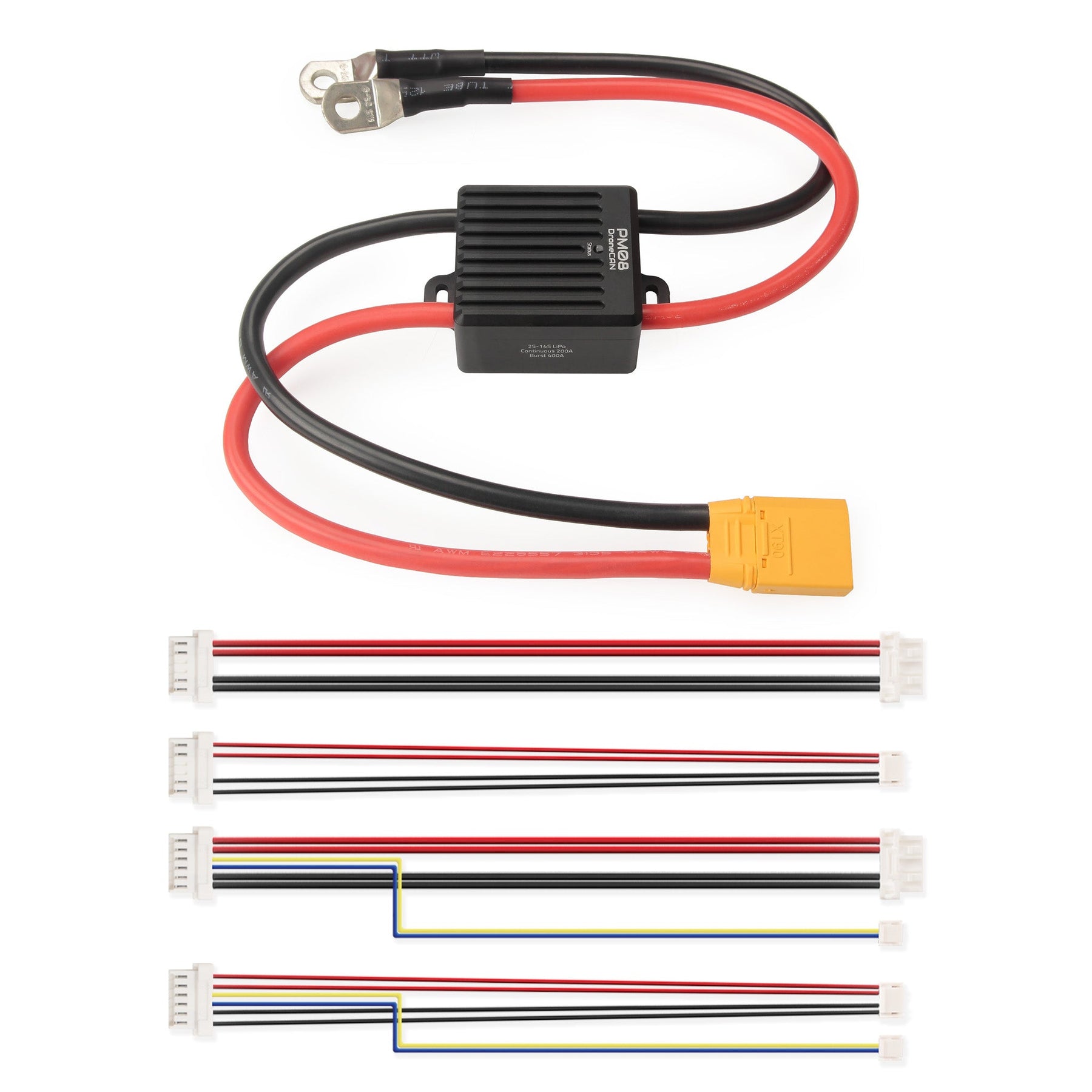

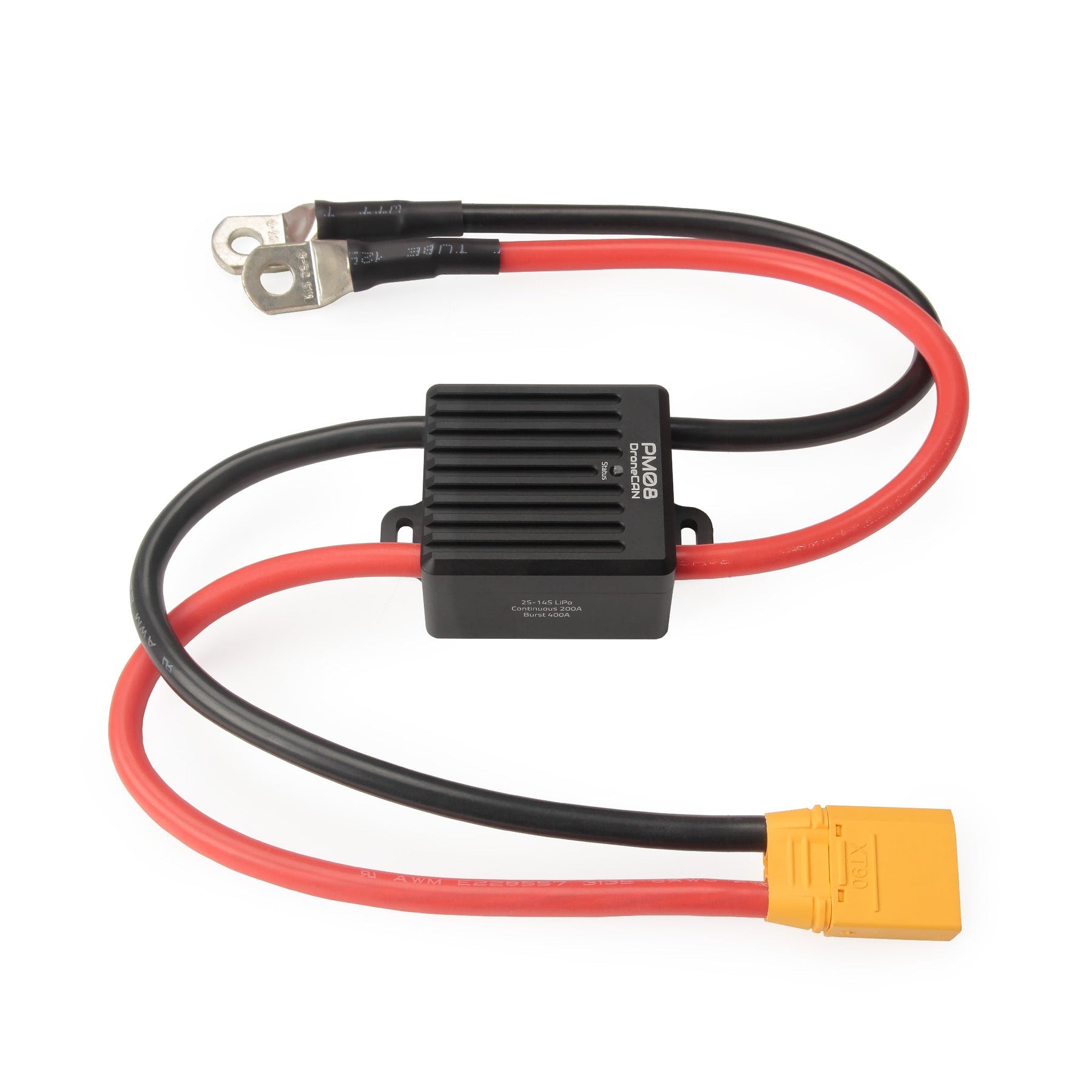

- XT90 & Ring Terminals
Status LED
- Flashing quickly continuously: MCU is in the bootloader stage, waiting for the firmware to be flashed
- Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
- Flashing slowly (one-second intervals): CAN is successfully connected
Mechanical Spec
- Size: 45mm×41mm×26mm (Not Include Cable)
- Weight: 185g (Include Cable)
