Description:

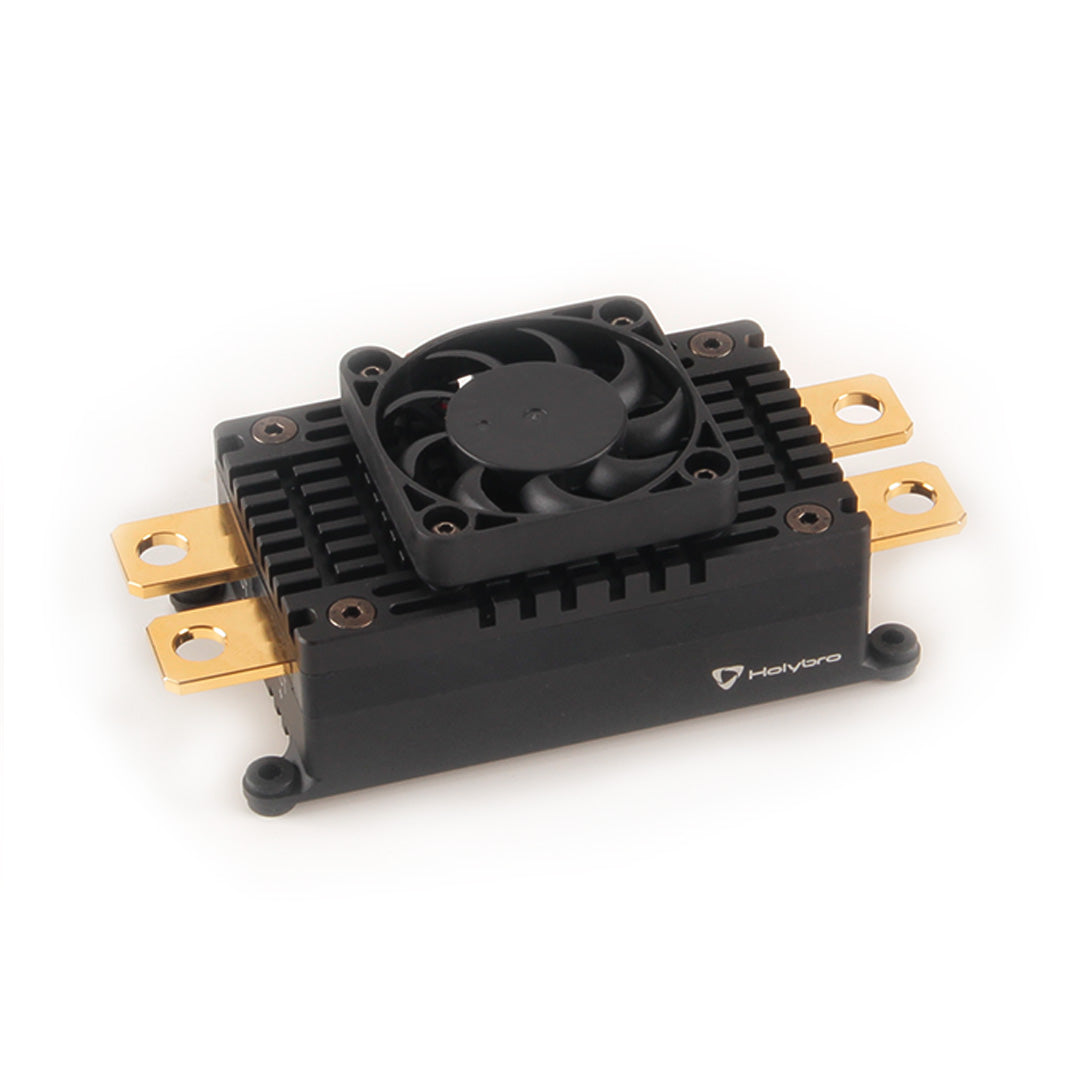

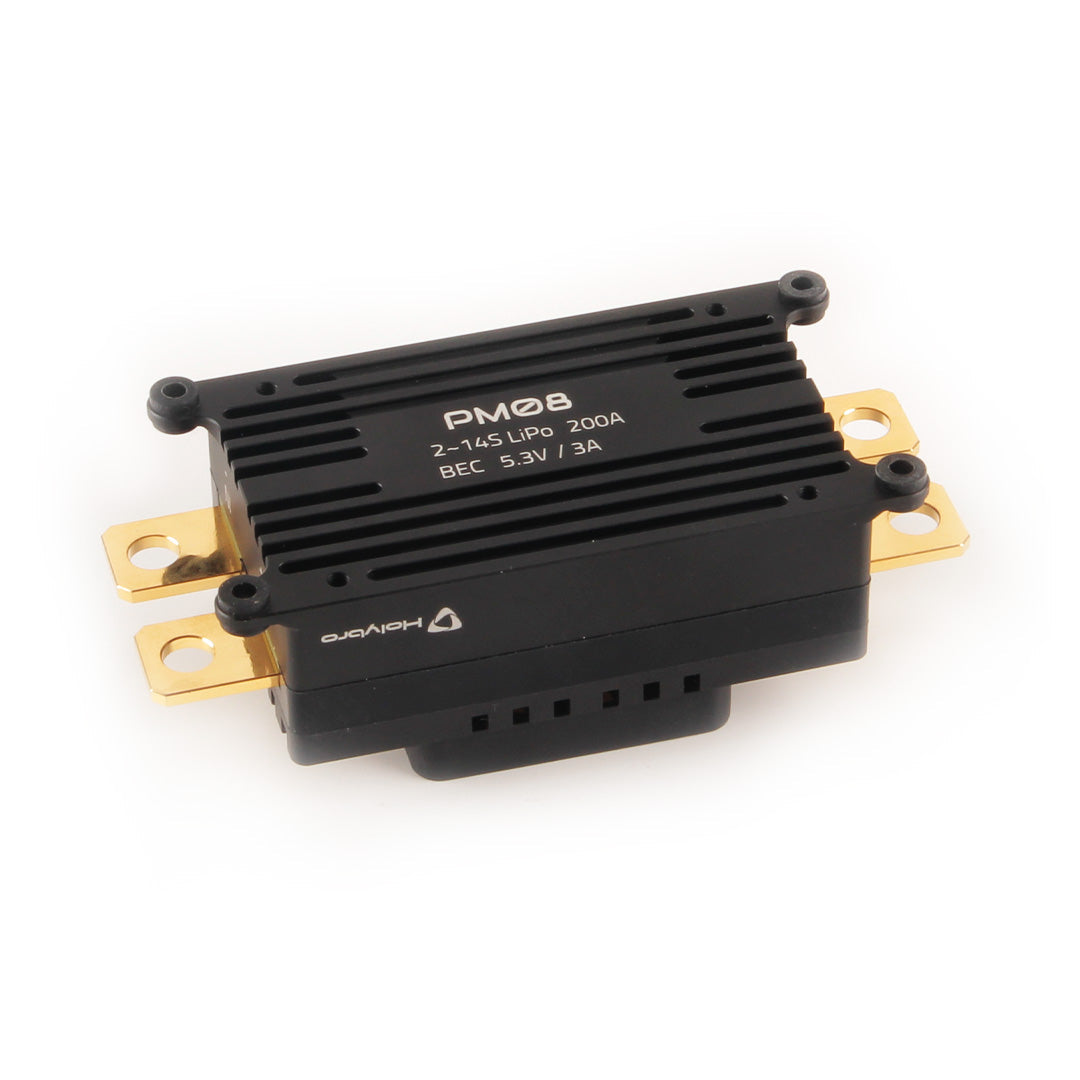

This PM08 Power Module supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable to the Flight Controller.

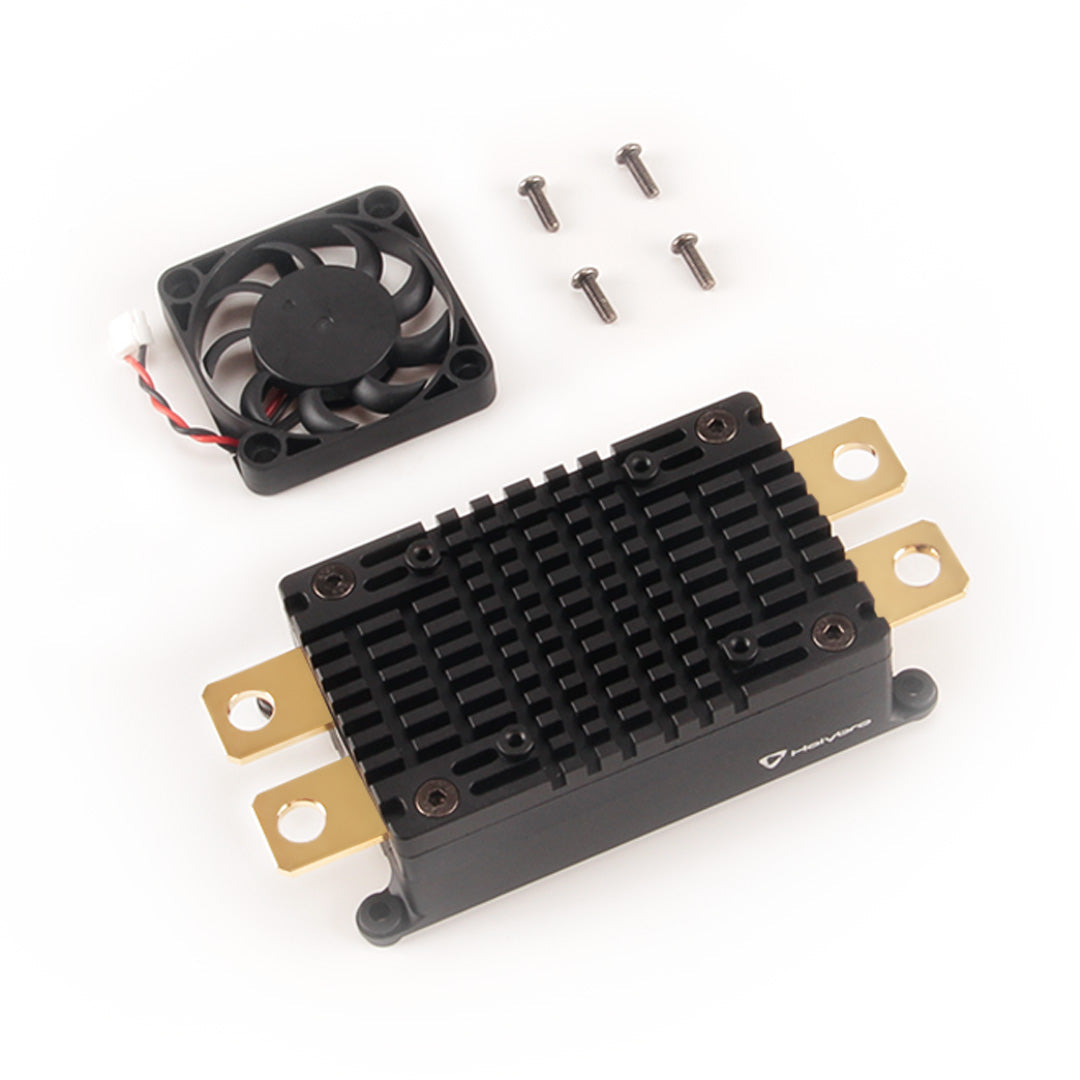

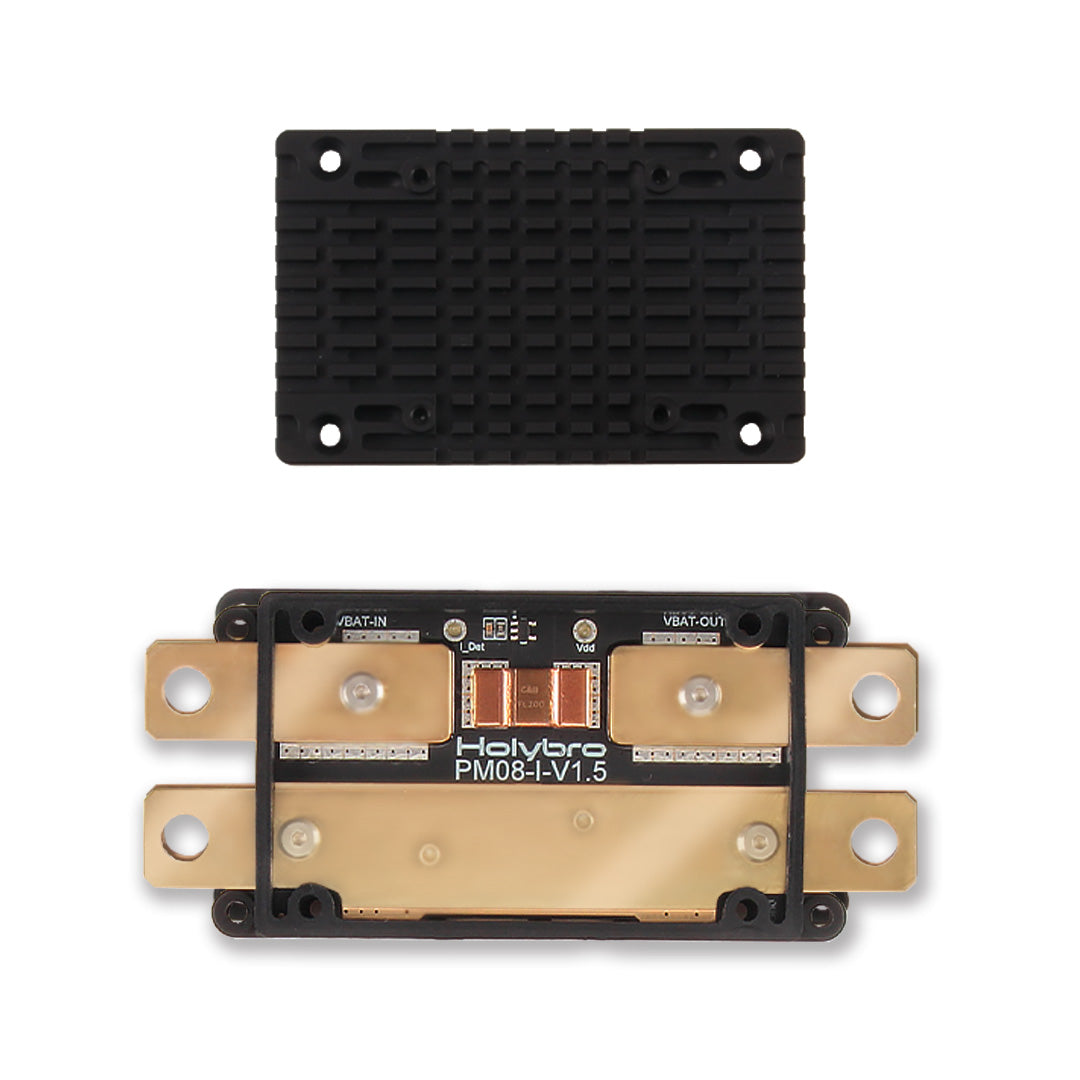

This power module is designed for vehicle with high power requirement. It comes housed in a aluminum heat sink case with fan, protecting the module from external elements and actively dissipates heat generated during operation to ensures durability and optimal performance.
Please Note:

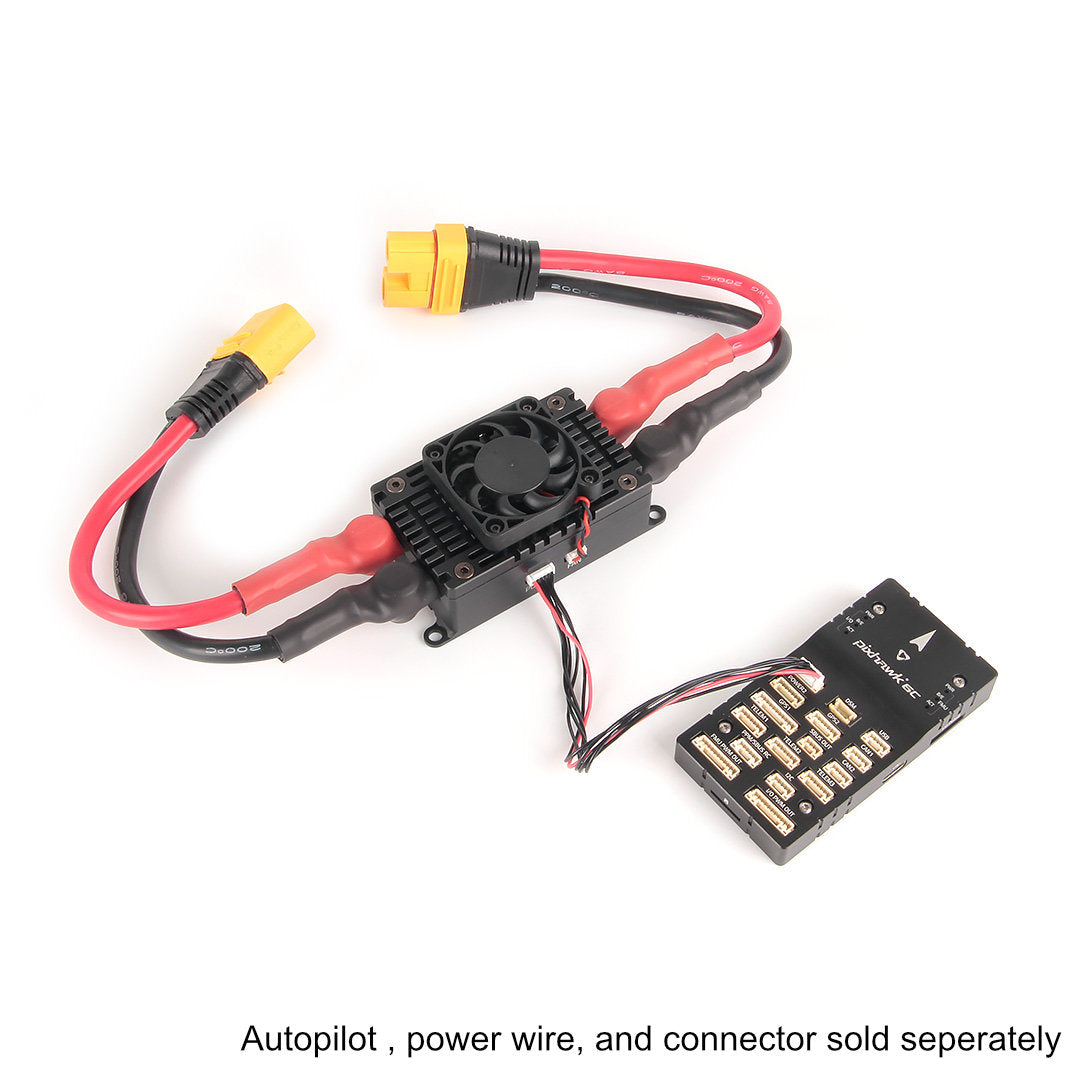

- Compatible with Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers.
- This analog power module is not compatible with Pixhawk 5X/6X series. Please use digital power module that end with a "D" for the 5X/6X series.
- Wire & connector sold separately
Feature
- Support 2S - 14S Battery
- 200A Cont. Current Rating
- Easy to Setup
- Aluminum Case for Heat dissipation
Specification
- Input Voltage: 2S-14S
- PCB Cont. Current Rating: 200A
- PCB Burst Current Rating: 1000A (<1 Sec @25C)
- Max Current Sensing: 237.6A
- Output: DC 5.1-5.3V & 3A Max
- Voltage Divider: 18.182
- Amperes per Volt: 72
- Dimensions: 101*45*26mm
- Mounting hole: 79mm*38.1mm

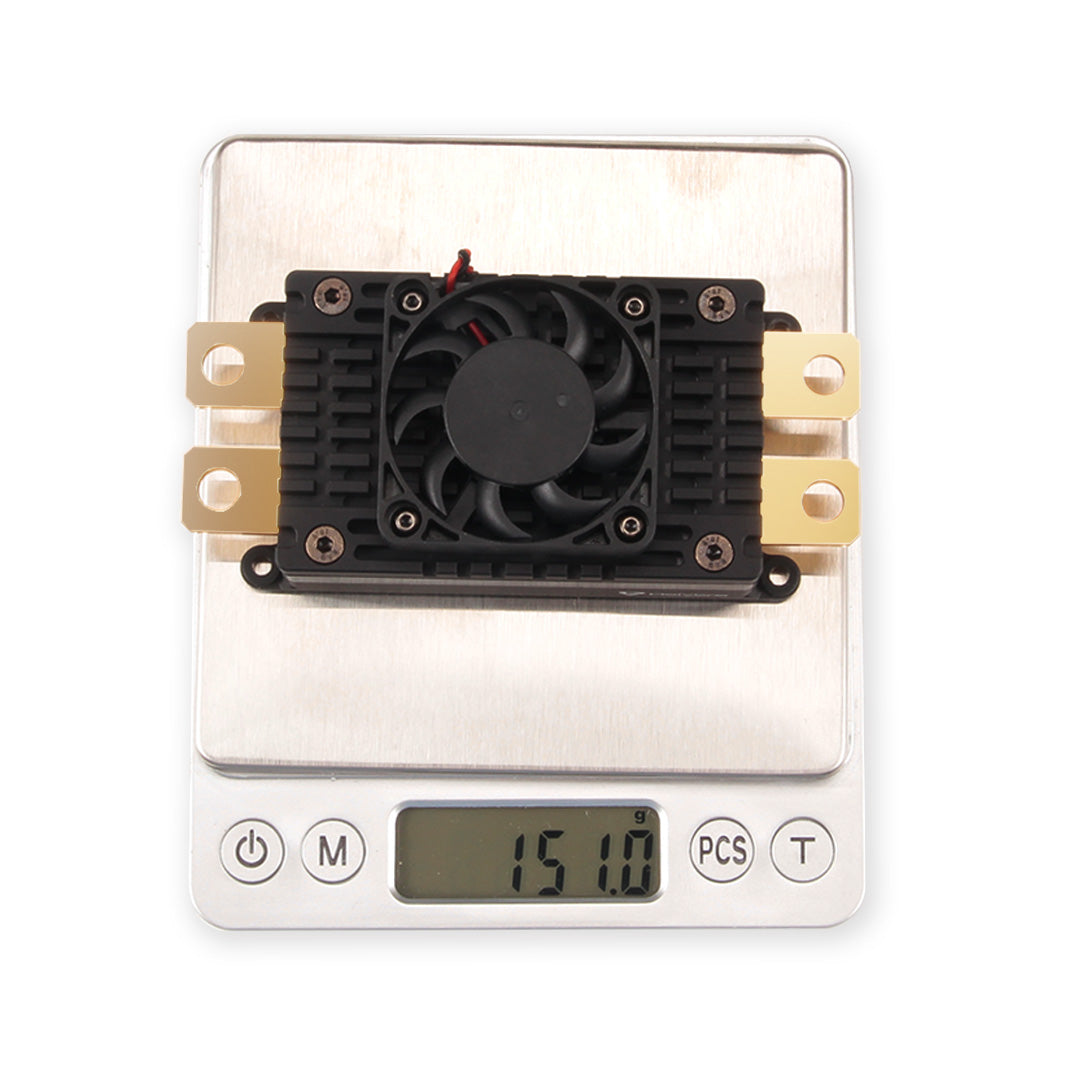

- Weight: 151g

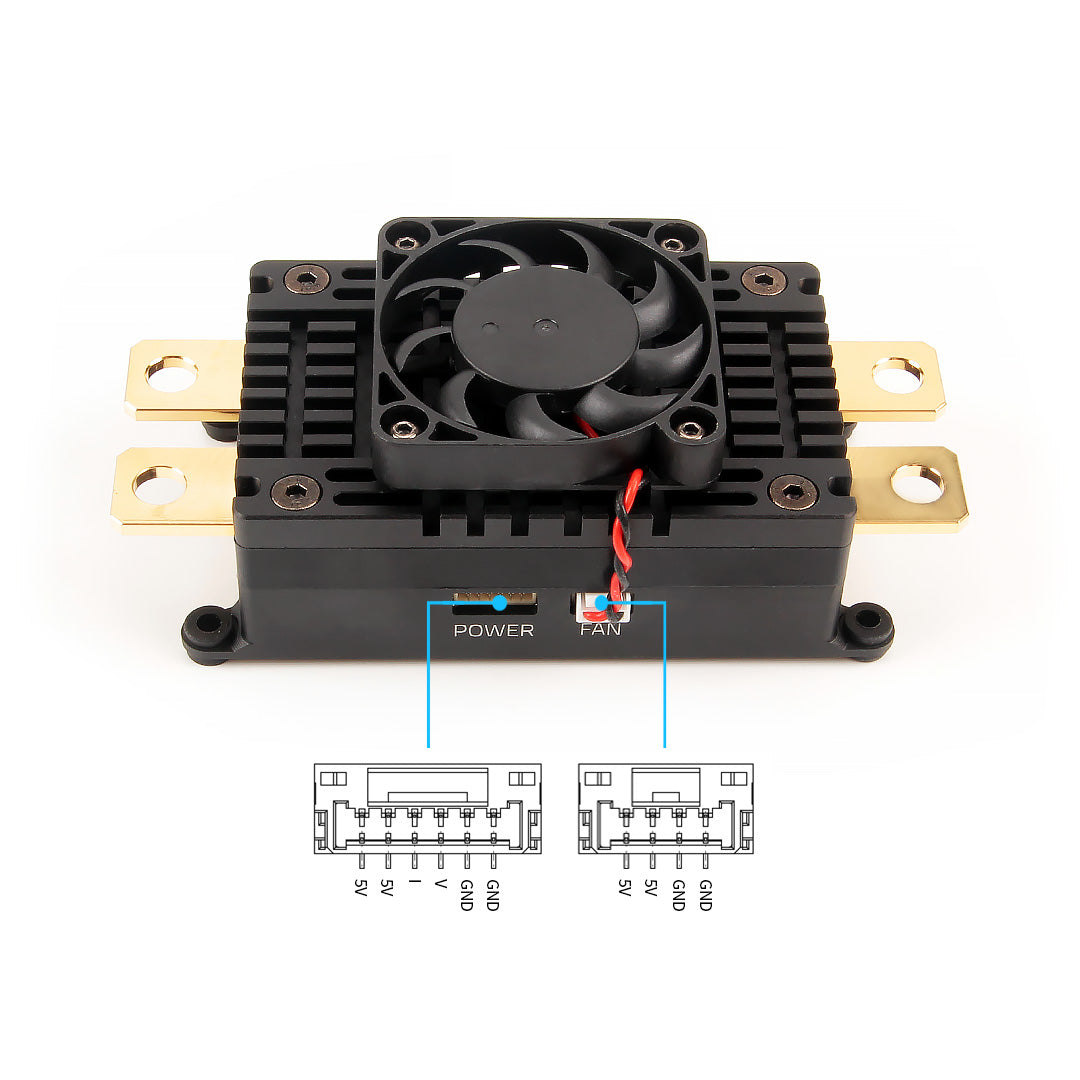

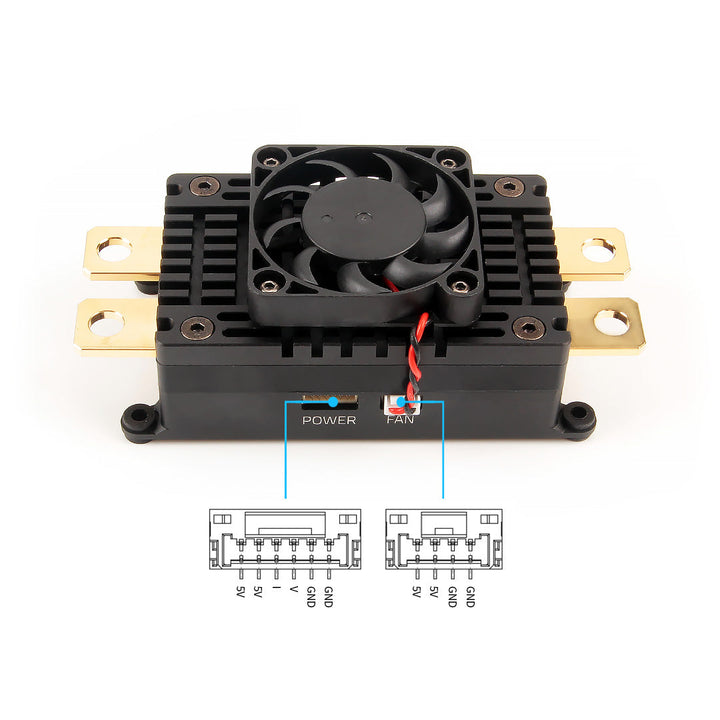

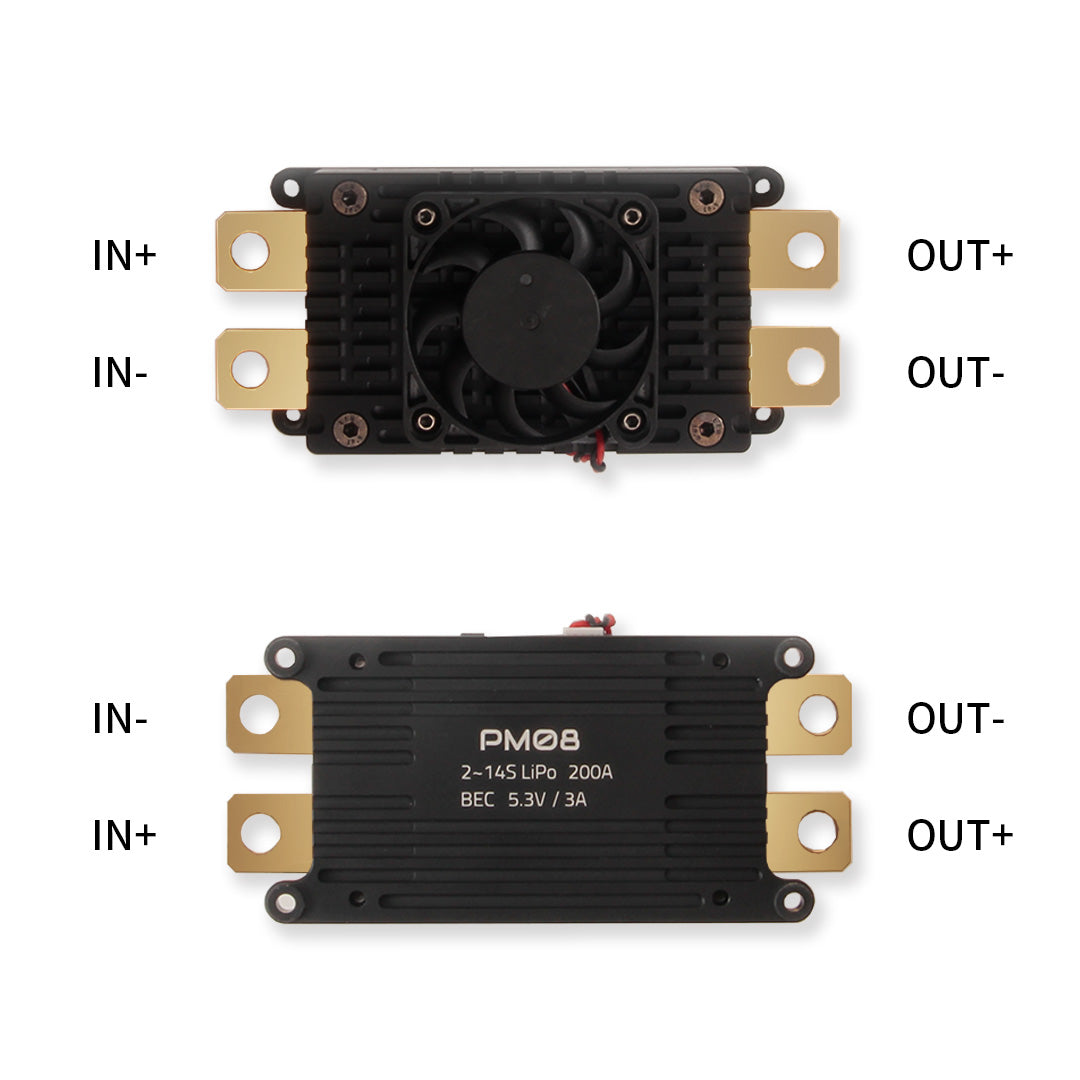

Ports
PM08 Power Module (SKU 15021) Package Includes:

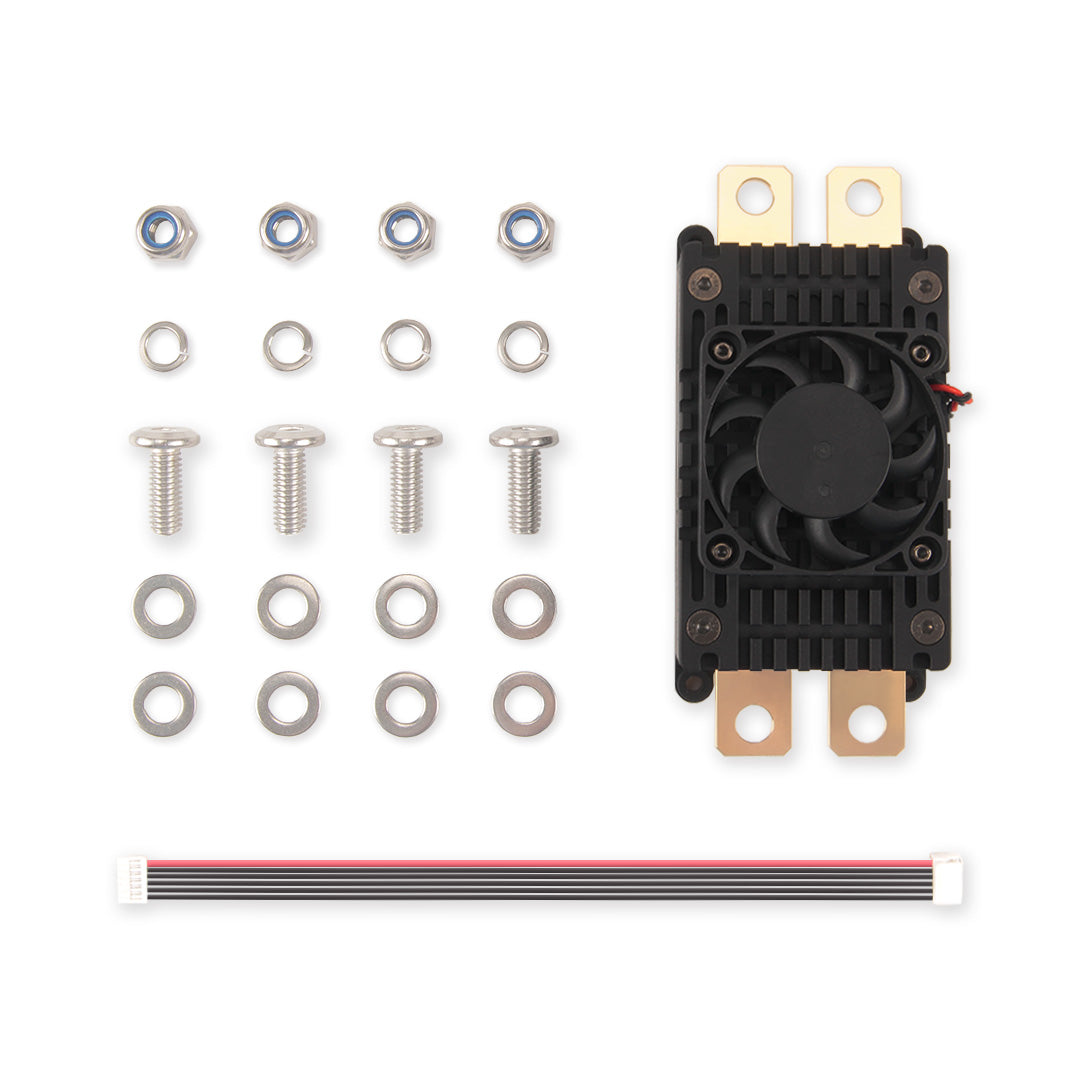

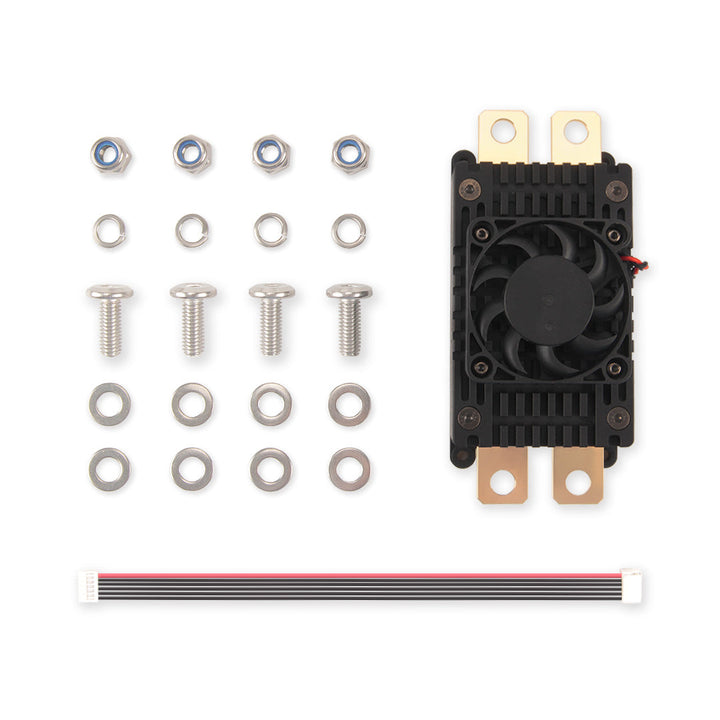

- 1x PM08 Power Module
- 1x 40x40mm Fan
- 1x JST GH 6 Position Connector 15 cm
- 4x Sets of Screws, Washers, and Nuts

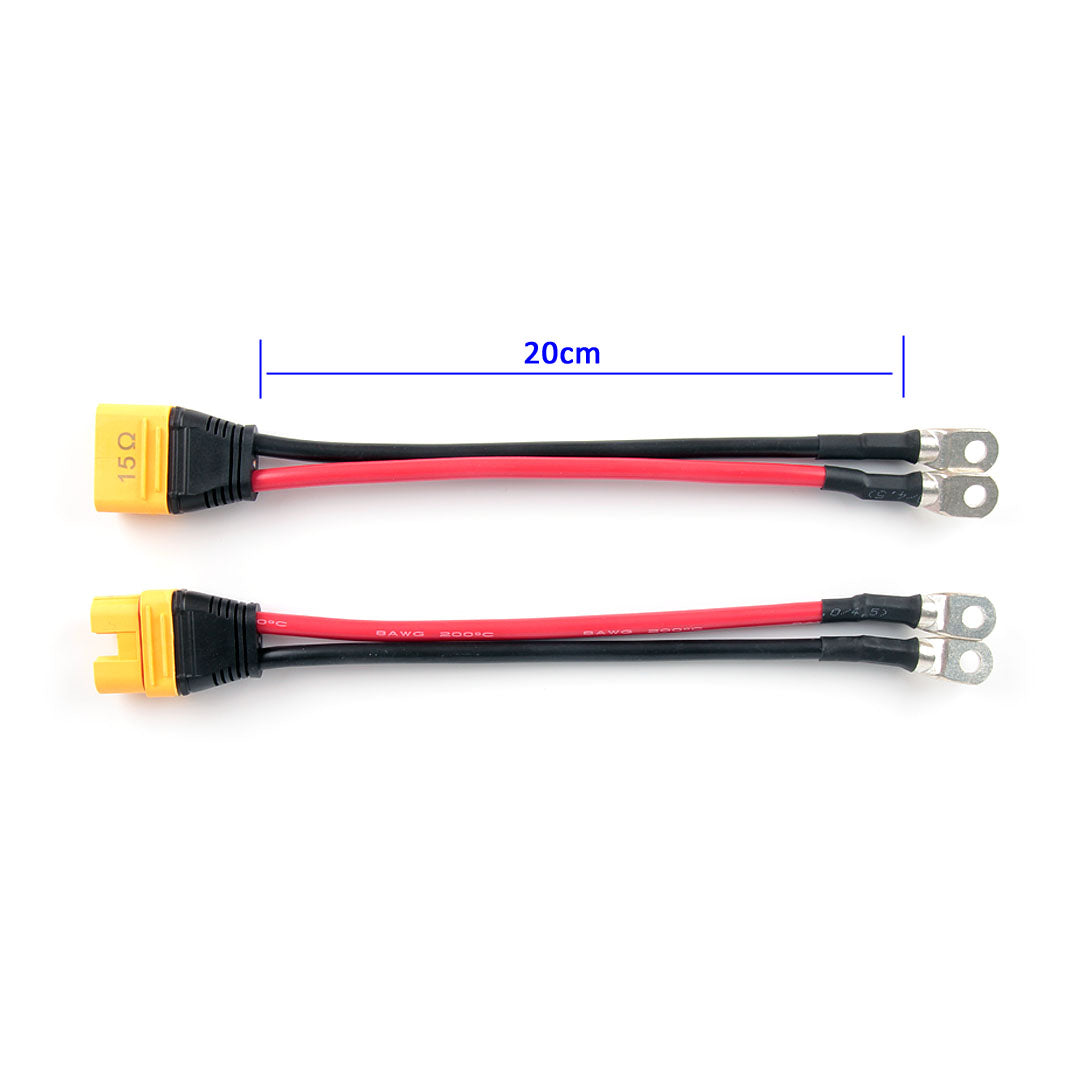

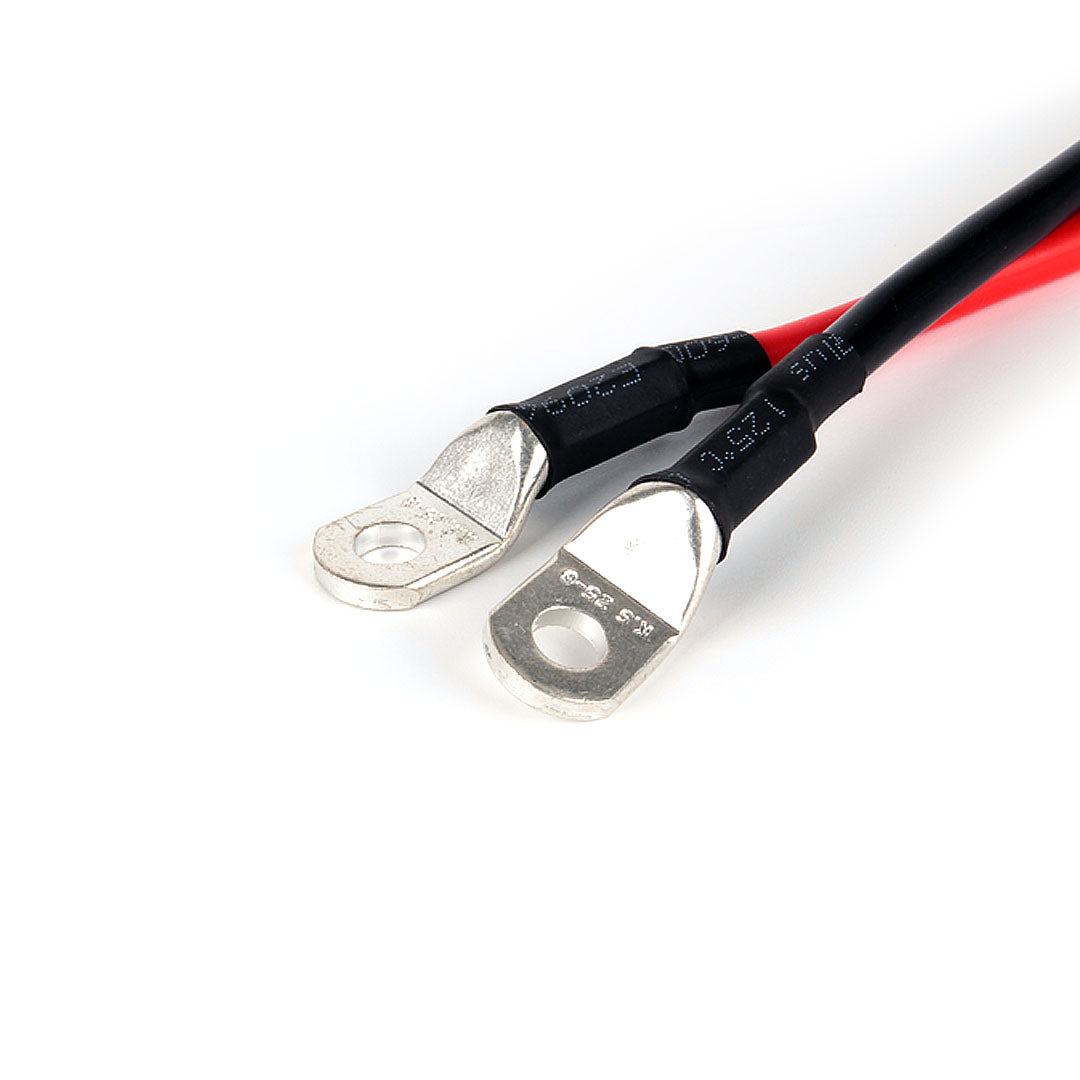

Connector & Wiring Set:
| SKU | Connectors | Wire Gauge | Wire Length | Application |

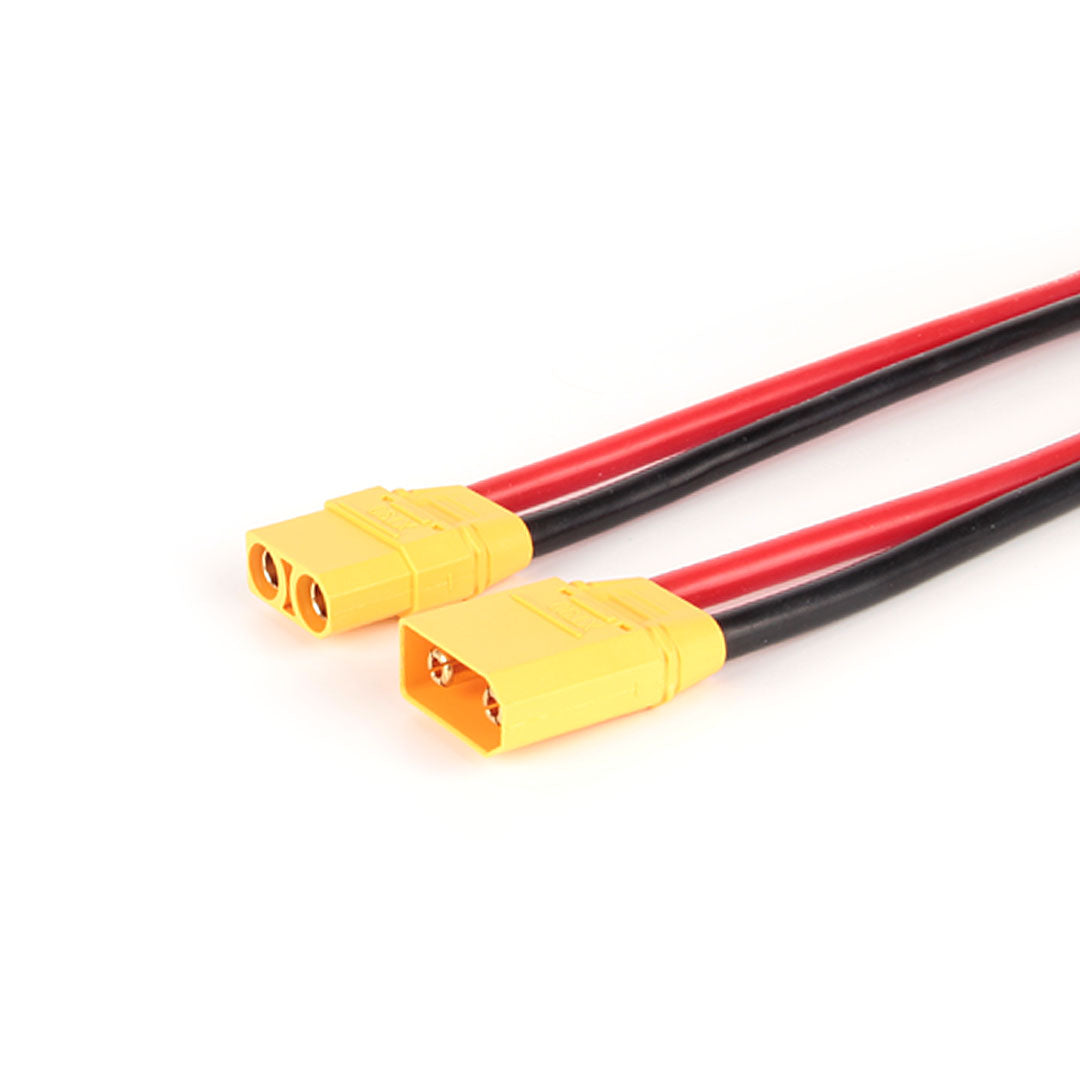

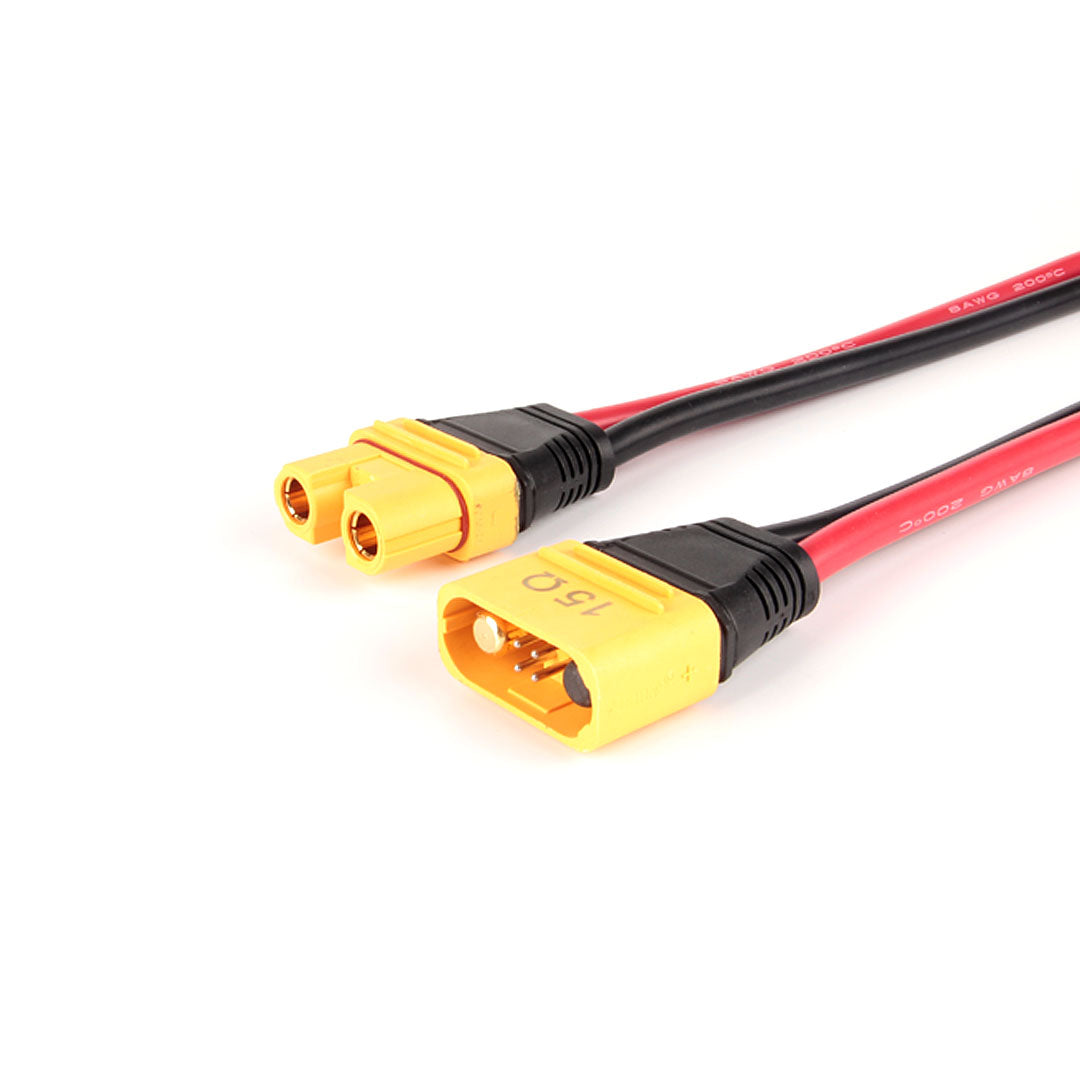

| 1234 | 1x AS150U-F 1x AS150U-M 4x Heat Shrink |
8 AWG | 10 CM | PM08 PM08D |
| 1234A | 1x AS150U-F 1x AS150U-M 4x Heat Shrink |
8 AWG | 20CM | PM08 PM08D |

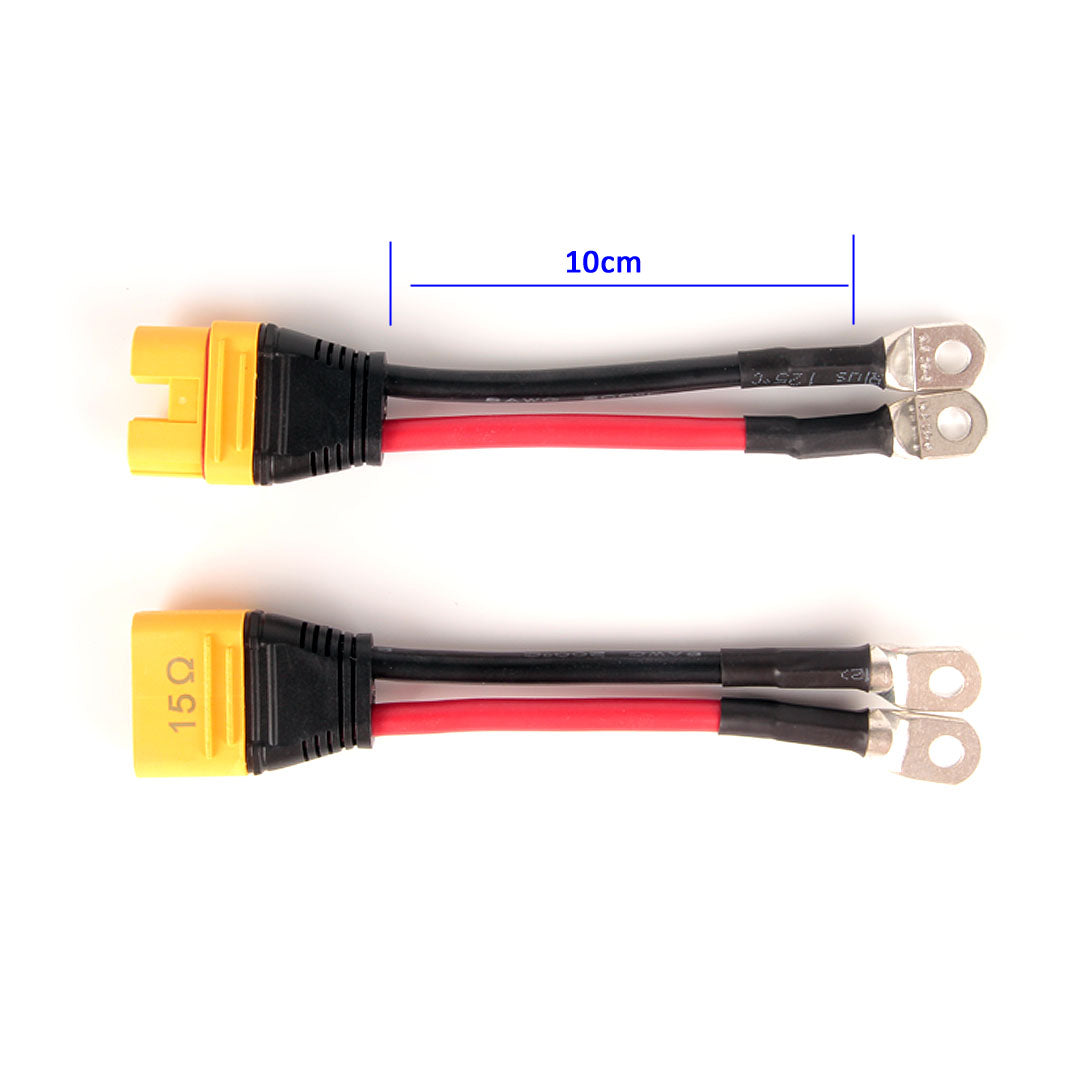

| 1239 | 1x XT90-F 1x XT90-M 4x Heat Shrink |

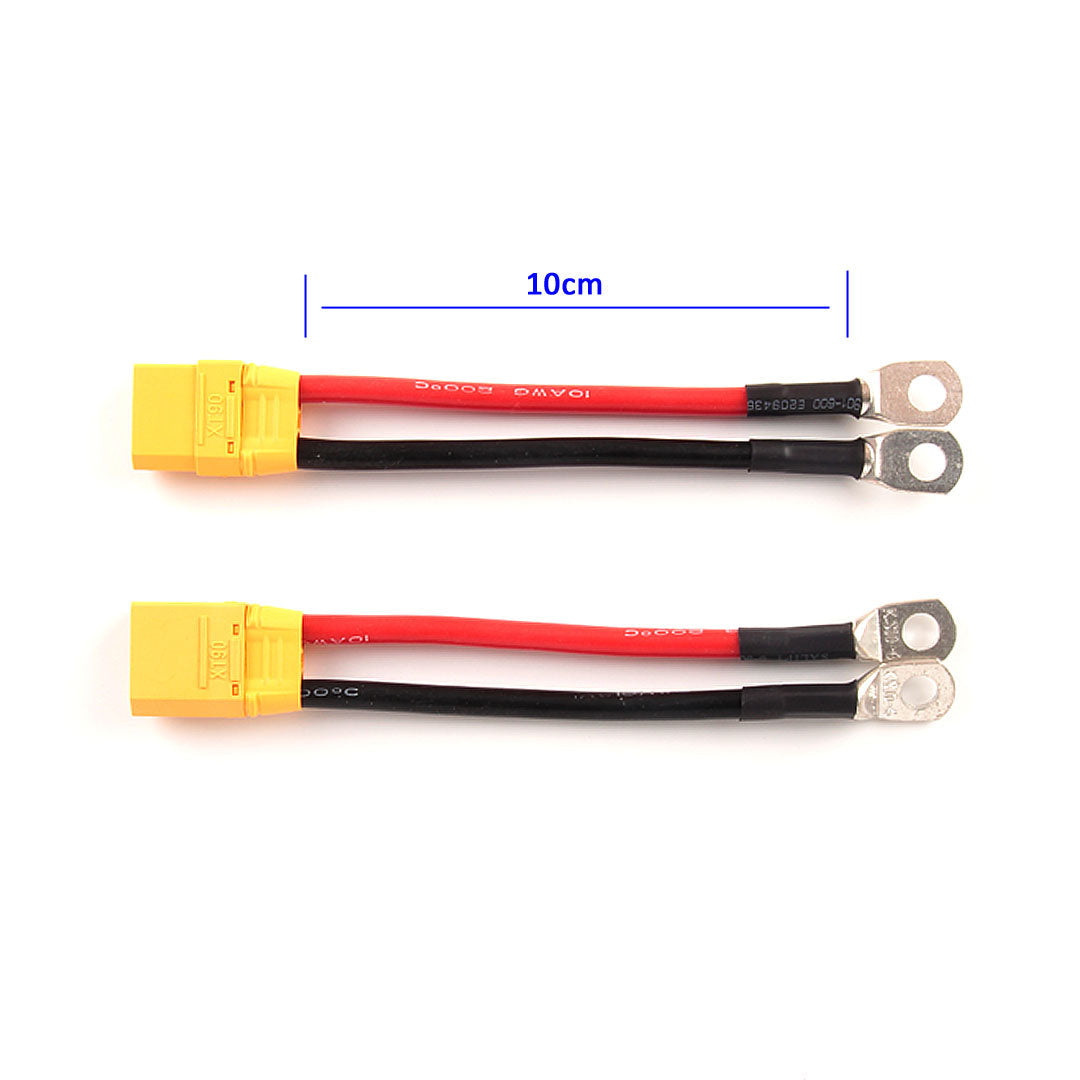

10 AWG | 10 CM | PM08 PM08D |

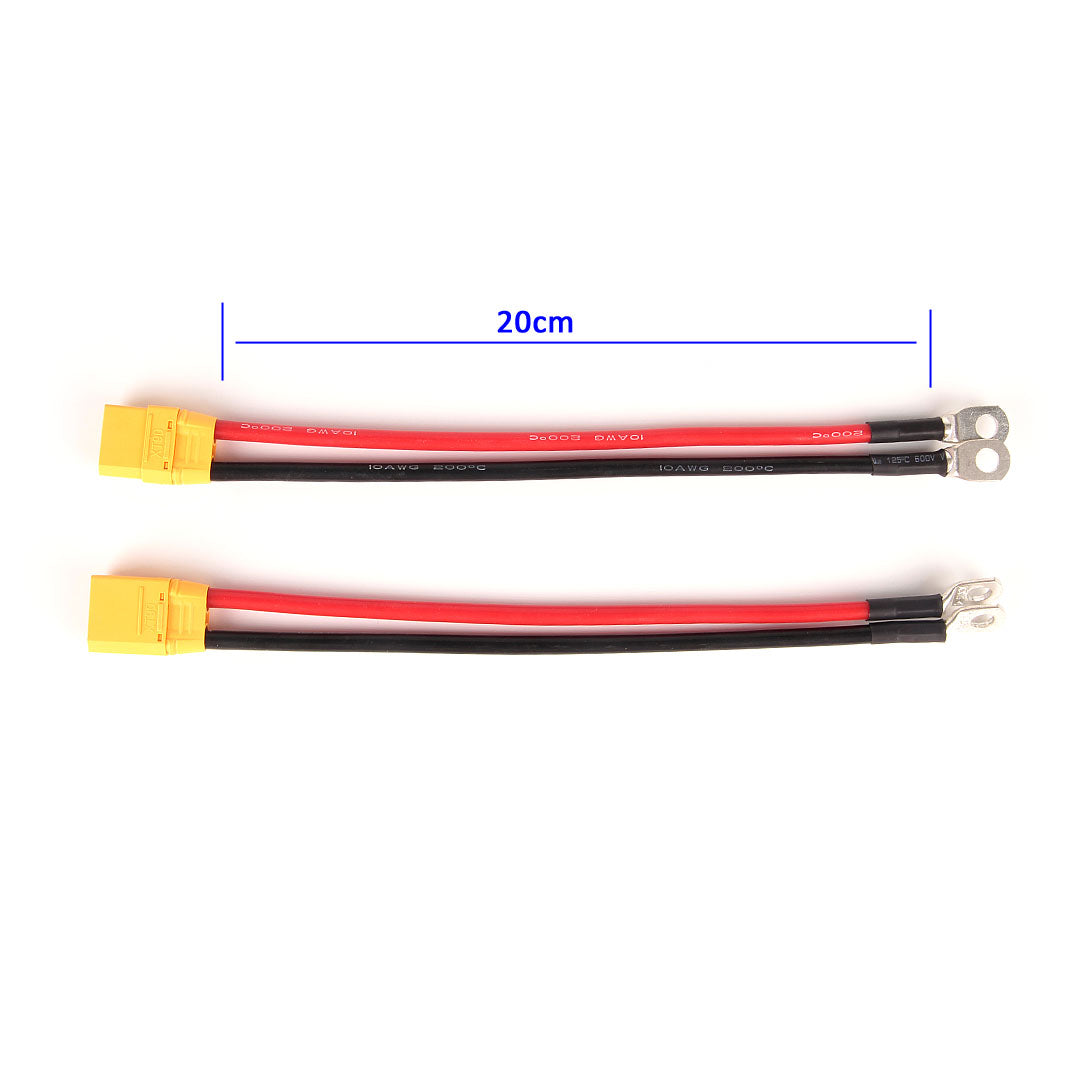

| 1239A | 1x XT90-F 1x XT90-M 4x Heat Shrink |
10 AWG | 20CM | PM08 PM08D |

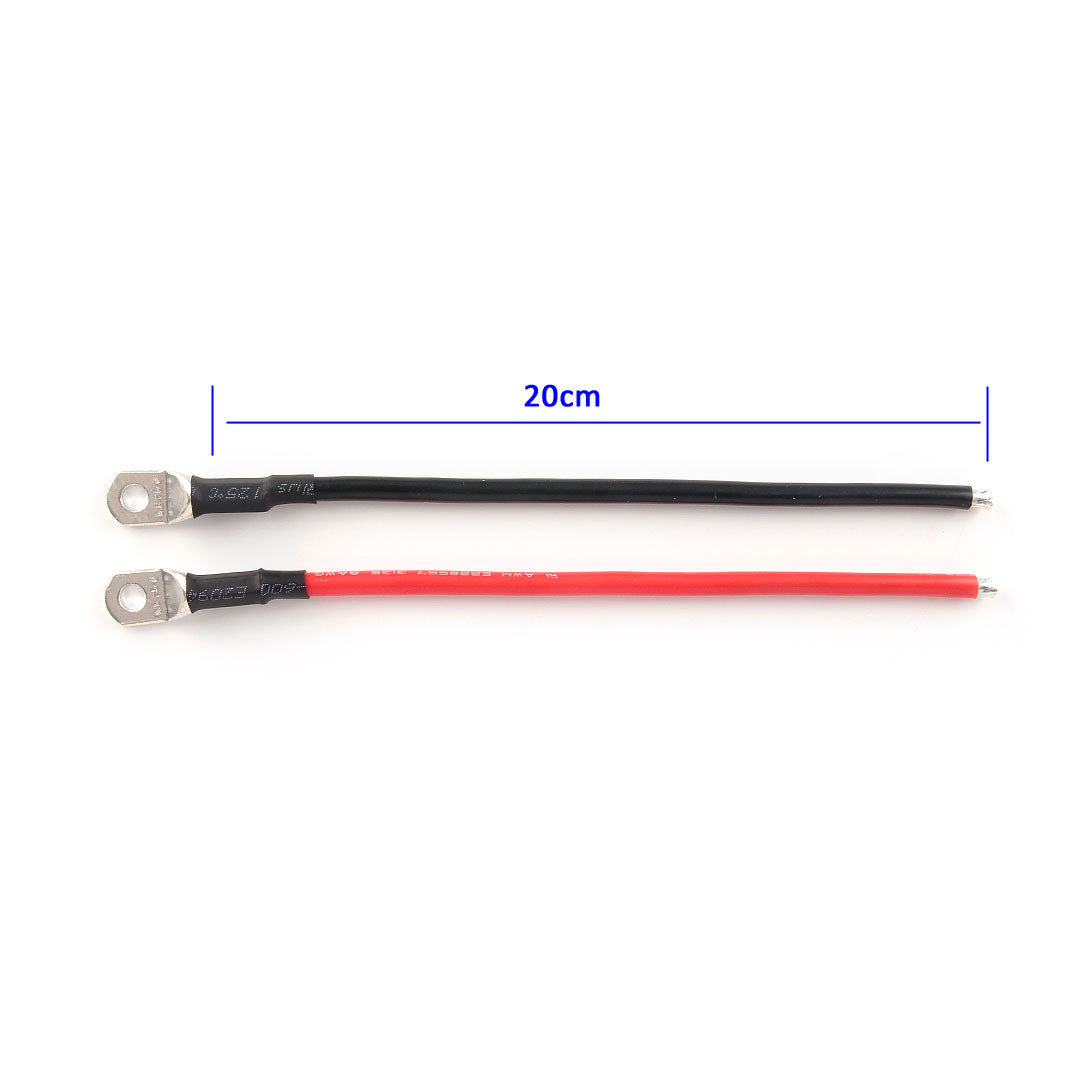

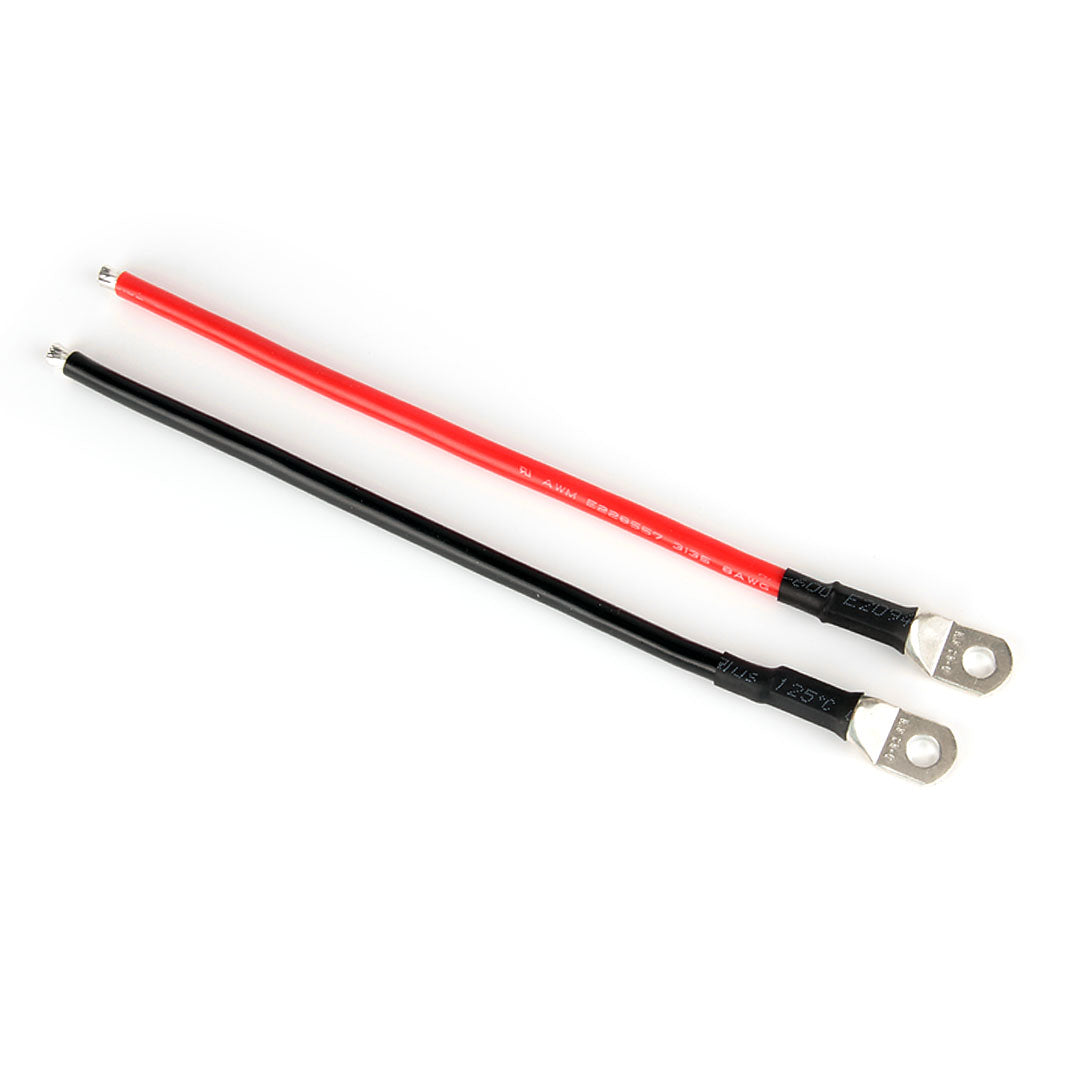

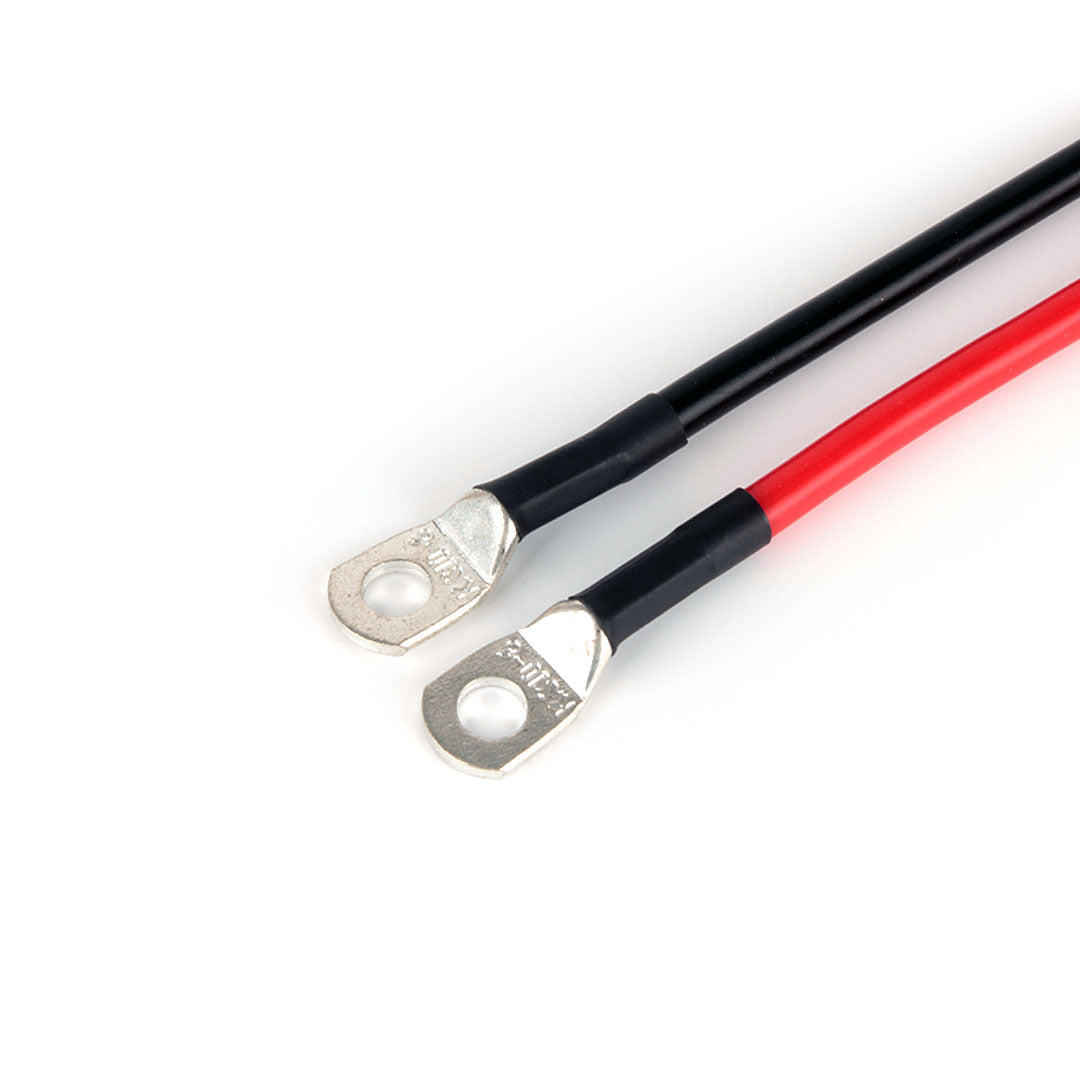

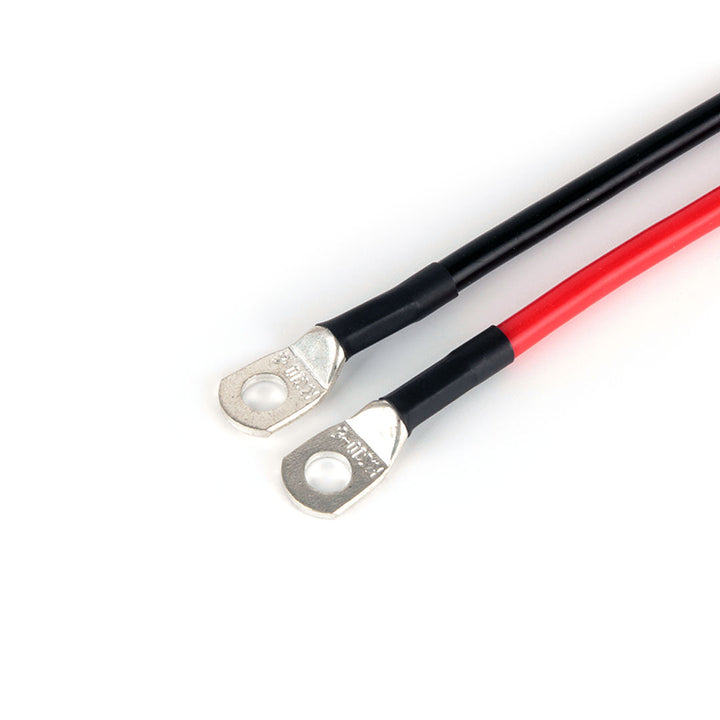

| 1240 | 1x Wire (Black) 1x Wire (Red) 4x Heat Shrink |
8 AWG | 20CM | PM08 PM08D |
Setup guide for PX4 & Ardupilot can be found in the Holybro Doc here.
