Overview

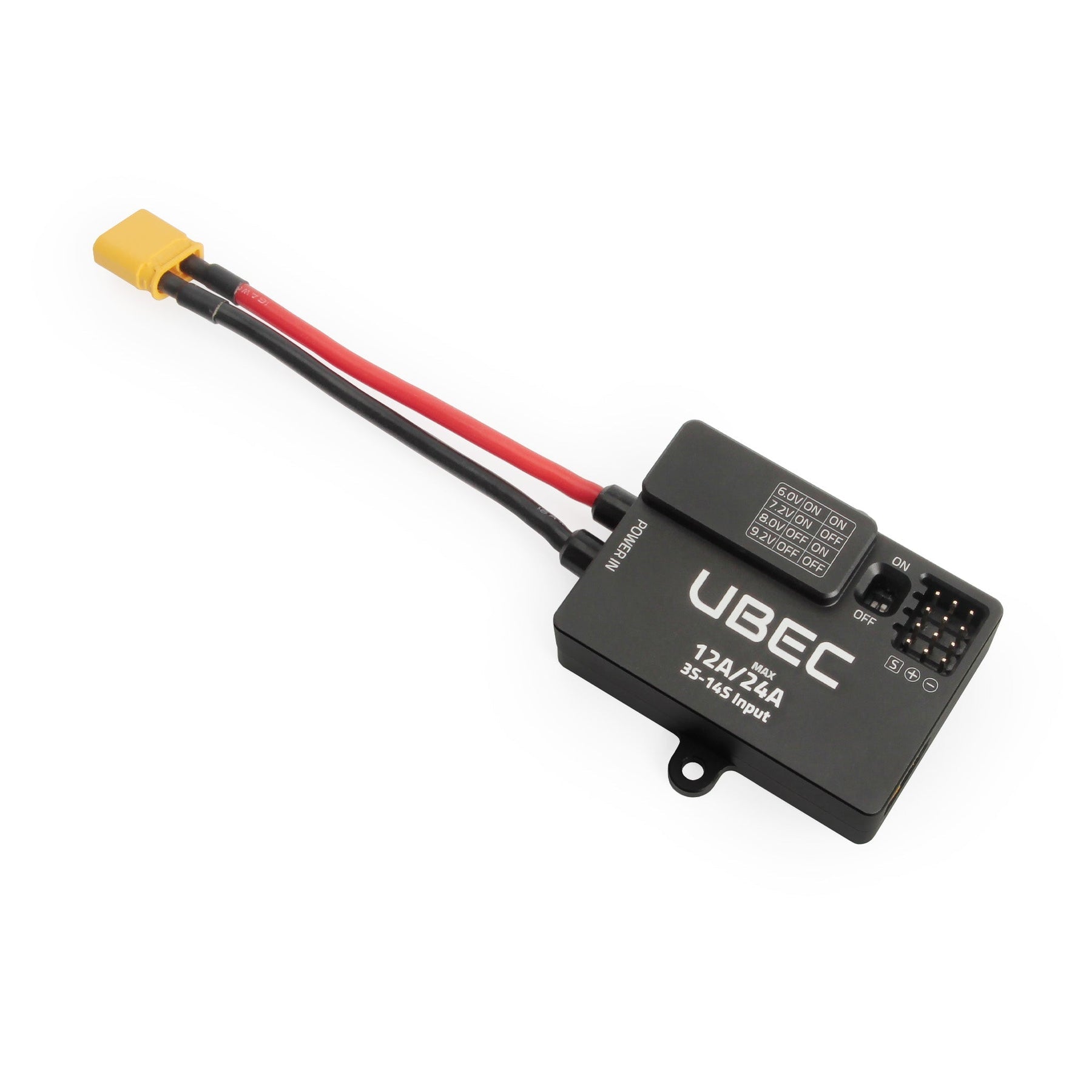

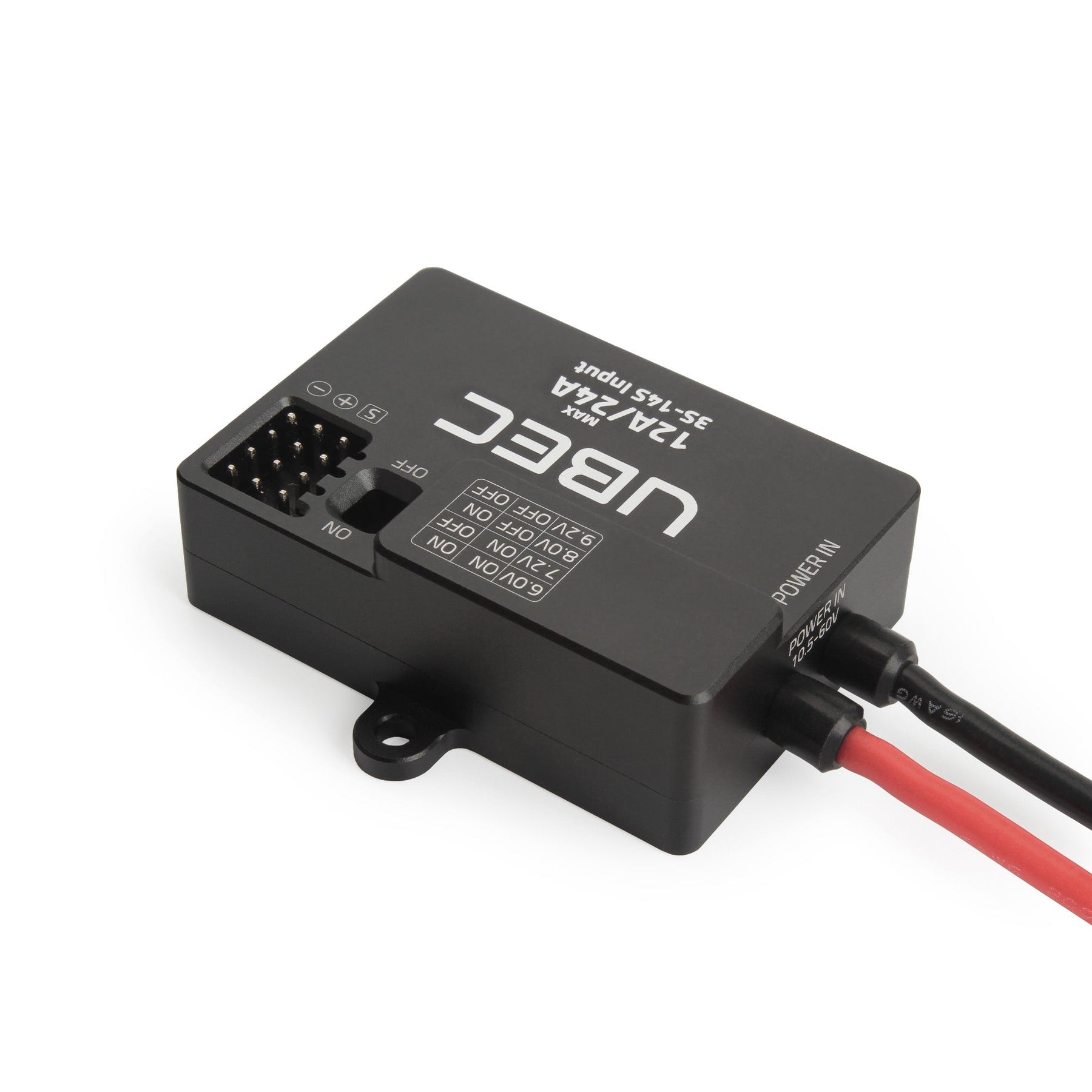

UBEC 12A (3-14S) is a synchronous step-down regulator from a high voltage or widely varying input supply. It draws the DC voltage from a 3-14S LiPo battery and drops the voltage to a level suitable for receivers and other electronic devices, and keeps providing a stable current output of up to 12Amp. The output voltage can be adjusted by the onboard DIP switches.
Features
- High efficiency DC-DC regulator chip for transfer efficiency of over 90%
- Adjustable output voltage (6.0V/7.2V/8.0V/9.2V) applicable for devices with different voltages
- 4-channel parallel header pin outputs for servos
-

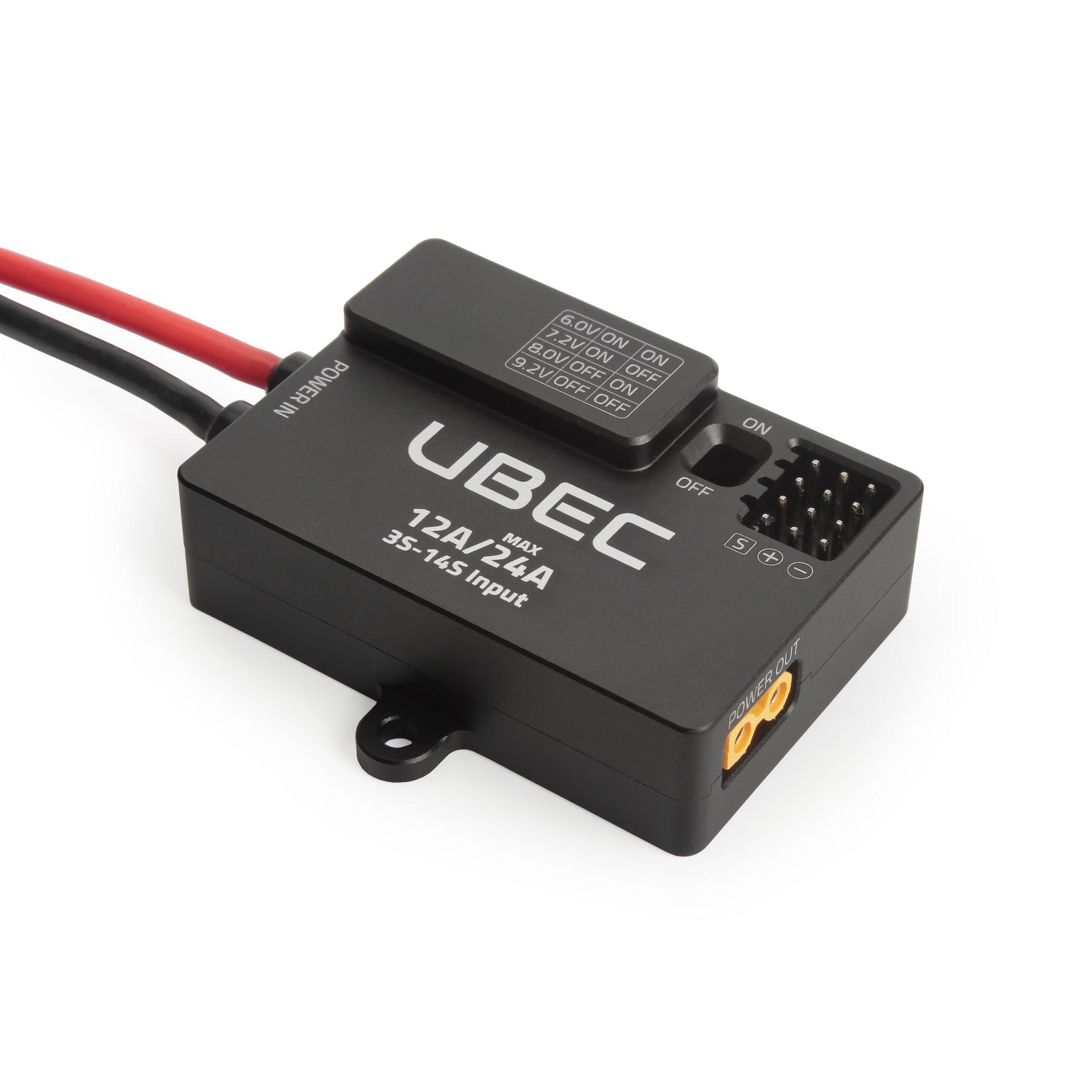

XT30 output for high current devices
-
Multiple protections including over-current, (output end) short circuit, overheat, and low-voltage cutoff
- Metal housing for quick heat dissipation and less electromagnetic interference.
Specifications
- Input voltage: 3~14S (XT30)

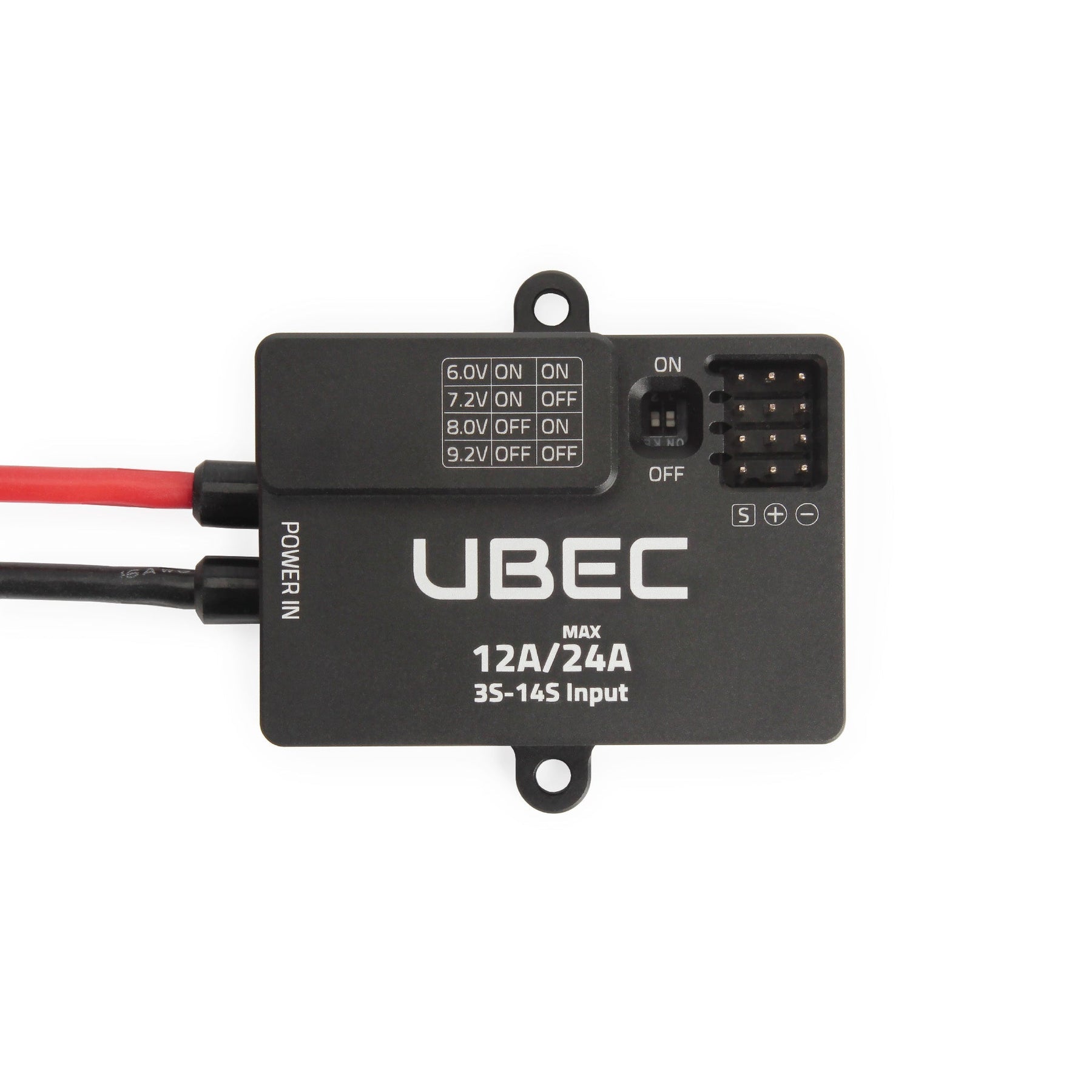

- Output voltage: 6.0V/7.2V/8.0V/9.2V (Adjustable by using onboard DIP Switches)
- Output Current
- Continuous: 12A
- Burst: 24A
-
Size: 48x33.6x16.3 mm
- Weight: 47.8g
Dimension:
Unit in millimeters

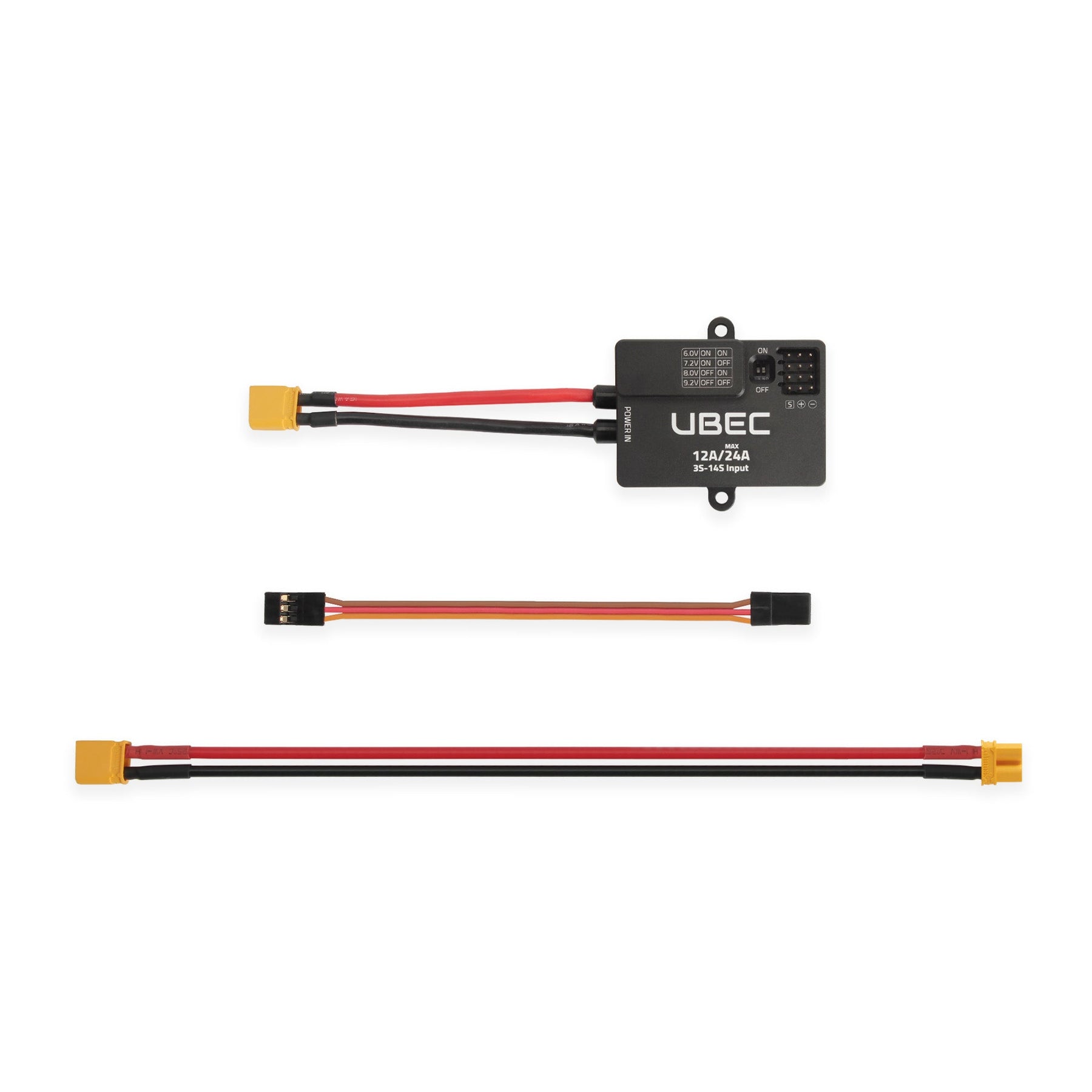

Package Includes：
- 1x UBEC Power Module
- 1x XT30 18AWG Cable
- 1x DuPont 3P Cable
